Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-186

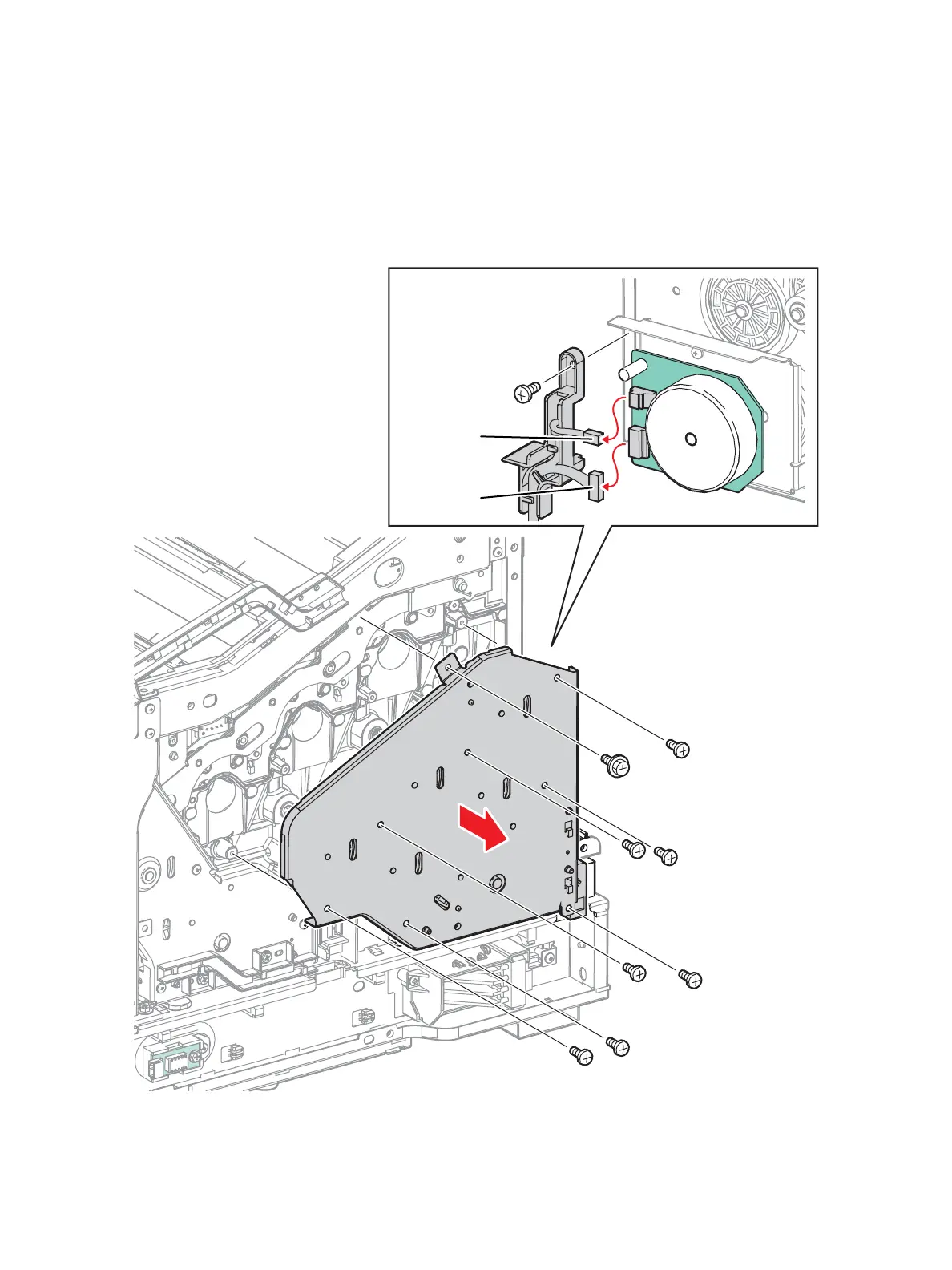

9. Remove 8 screws (silver, tapped, 6 mm) that secure the (Y/ M/ C) PR Drive Assembly to the printer
and open the Drive Assembly towards the rear.
10. Remove one screw (silver, 6 mm) that secures the (Y/ M/ C) PR Harness Guide (PL 11.1.1) to the (Y/
M/ C) PR Drive Assembly and remove the Harness Guide.
11. Disconnect 2 wiring harness connectors P/J4722 and P/J5244 that are connected to the (Y/ M/ C)
PR Drive Assembly.
s7100-217
P/J5244
P/J4722
