Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-158
REP 8.8 Toner Cover Switch Kit
PL 8.1.98
CAUTION: Do not expose the Imaging Unit to light for more than 5 minutes. Cover the Imaging
Unit to avoid damage. Do not touch the surface of the Imaging Unit.
1. Remove the Imaging Unit (Y/ M/ C/ K) (REP 6.0 Imaging Unit (Y/ M/ C/ K) on page 4-121).
2. Remove the Left Imaging Unit Guide Assembly (REP 6.5 Left Imaging Unit Guide Assembly on
page 4-129).

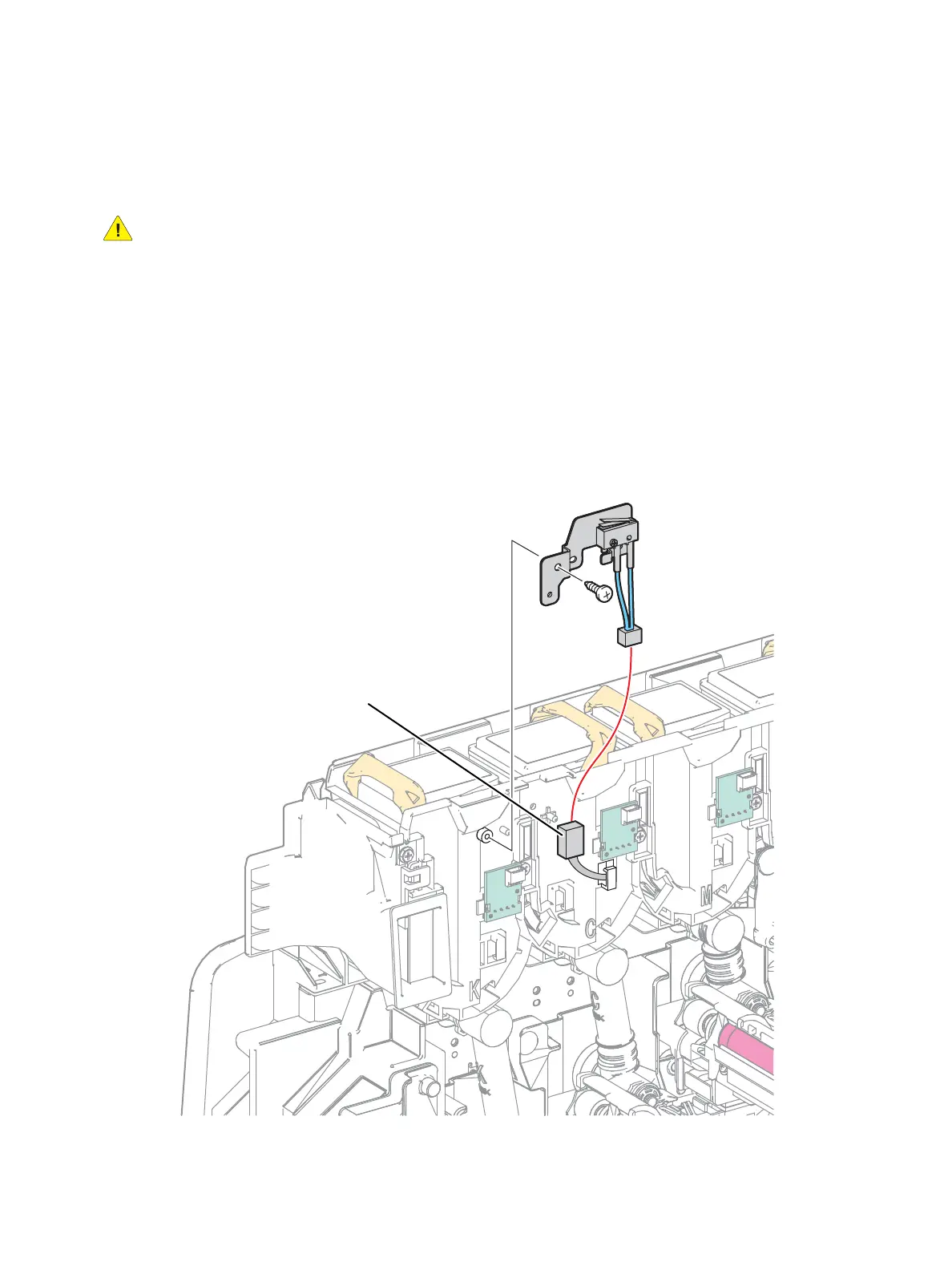

3. Disconnect the wiring harness connector P/J5292 that is connected to the Interlock Switch
Assembly (PL 8.1.14).
4. Remove one screw (silver, tapped, 8 mm) that secures the Toner Cartridge Interlock Switch Plate
(PL 8.1.16) to the printer.
5. Release the 2 bosses from the Toner Cartridge Interlock Switch Plate to remove from the Toner
Cover Switch.
s7100-258
P/J5292
