Xerox Phaser 7100 Service Manual

Image Quality
Xerox Internal Use Only Phaser 7100 Service Manual 3-45

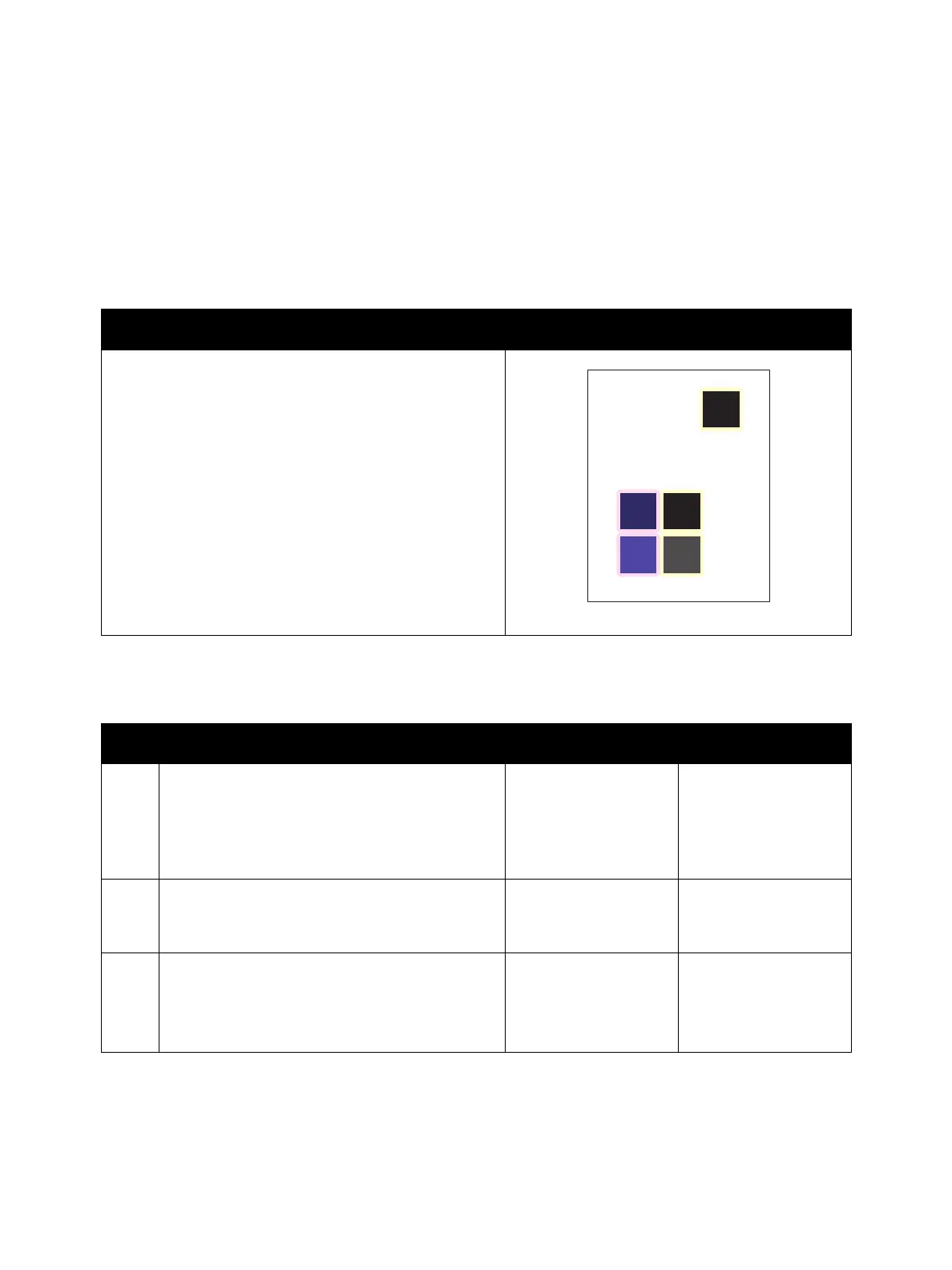

IQ-16 Fringe
There is toner scattering around the image of multiple color sections.
Initial Action
• Check the paper transfer path is free of paper dust and debris.
Troubleshooting Reference
Applicable Parts Example Print
• Transfer Roller (2nd BTR), PL 4.3.18
• IBT Unit, PL 9.1.99
• HVPS2 PWB, PL 12.1.2
Troubleshooting Procedure
Step Actions and Questions Yes No
1. Check for moisture effect on the paper.
Load a freshly opened (or one that has been
sealed in moisture controlled environment)
recommended paper and perform test print.
Is the image printed normally?
Troubleshooting
complete.
Go to step 2.
2. Check the Paper Type settings.
Does the printed paper match the Paper Type
that is set?
Go to step 3. Set the correct paper
type (Adjusting Paper
Type on page 6-18).
3. Check the transfer voltage.
Perform Adjusting Voltage Offset on page 6-19.
Perform a test print.
Is the image printed normally?
Troubleshooting
complete.
Go to step 4.
Fringe
