Bypass Tray

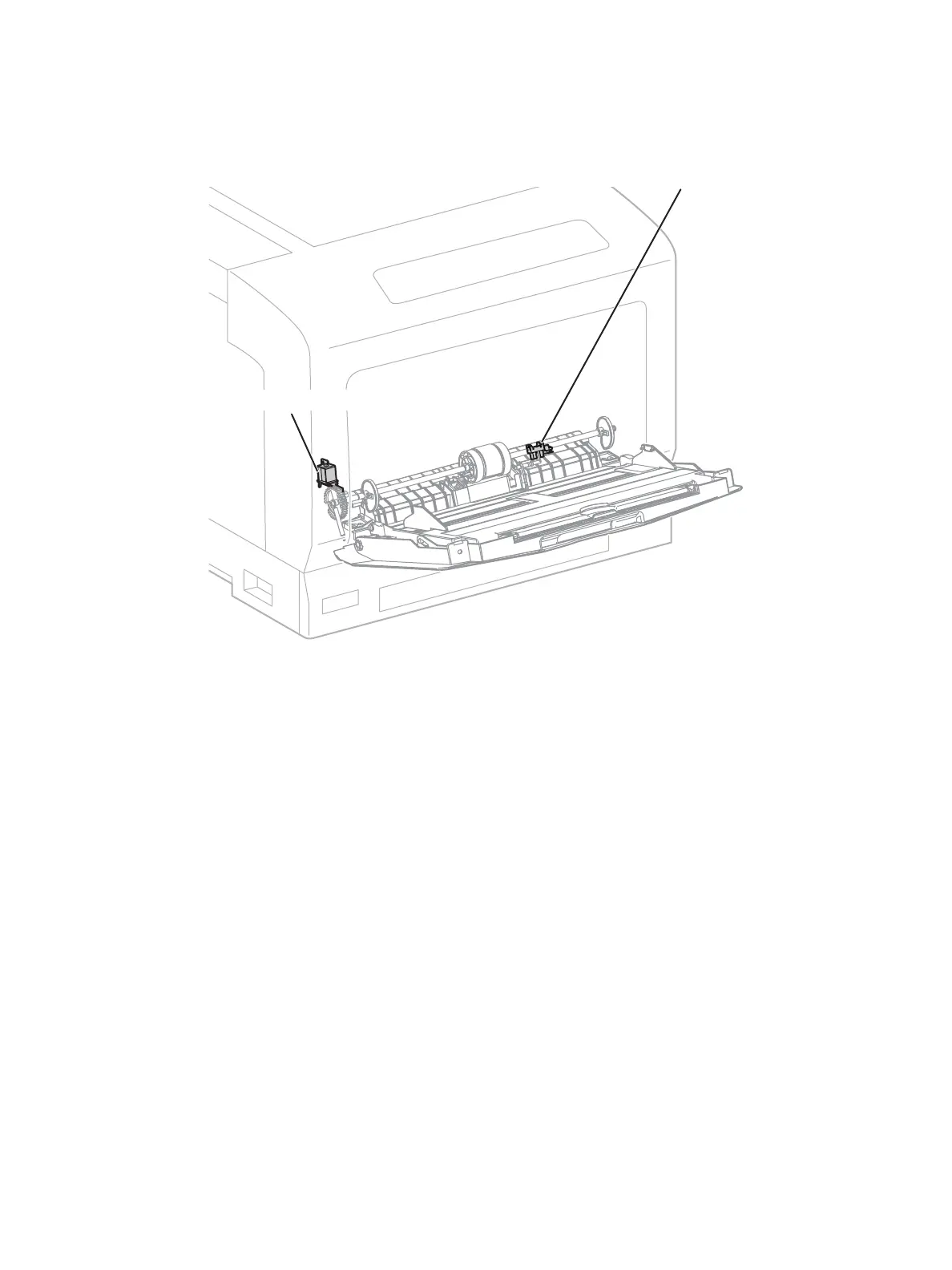

• Bypass Tray Feed Solenoid - Transfers the drive of the Paper Handling Motor to the Bypass Tray
Feed Roller Assembly.
• Bypass Tray No Paper Sensor - Detects whether or not paper exists on the Bypass Tray by
changes in the Actuator.
(No paper: Sensor blocked)
s7100-194
Bypass Tray Feed Solenoid
Bypass Tray No Paper Sensor
