Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-202
Electrical
REP 12.1 HVPS2 PWB
PL 12.1.2
CAUTION: PWB’s can be damaged by an electrostatic discharge. Observe all ESD procedures to
avoid component damage.
CAUTION: Do not touch the IBT Belt surface.
1. Remove the IBT Unit (REP 9.10 IBT Unit on page 4-177).
2. Remove the Top Cover Assembly (REP 1.1 Top Cover Assembly on page 4-9).

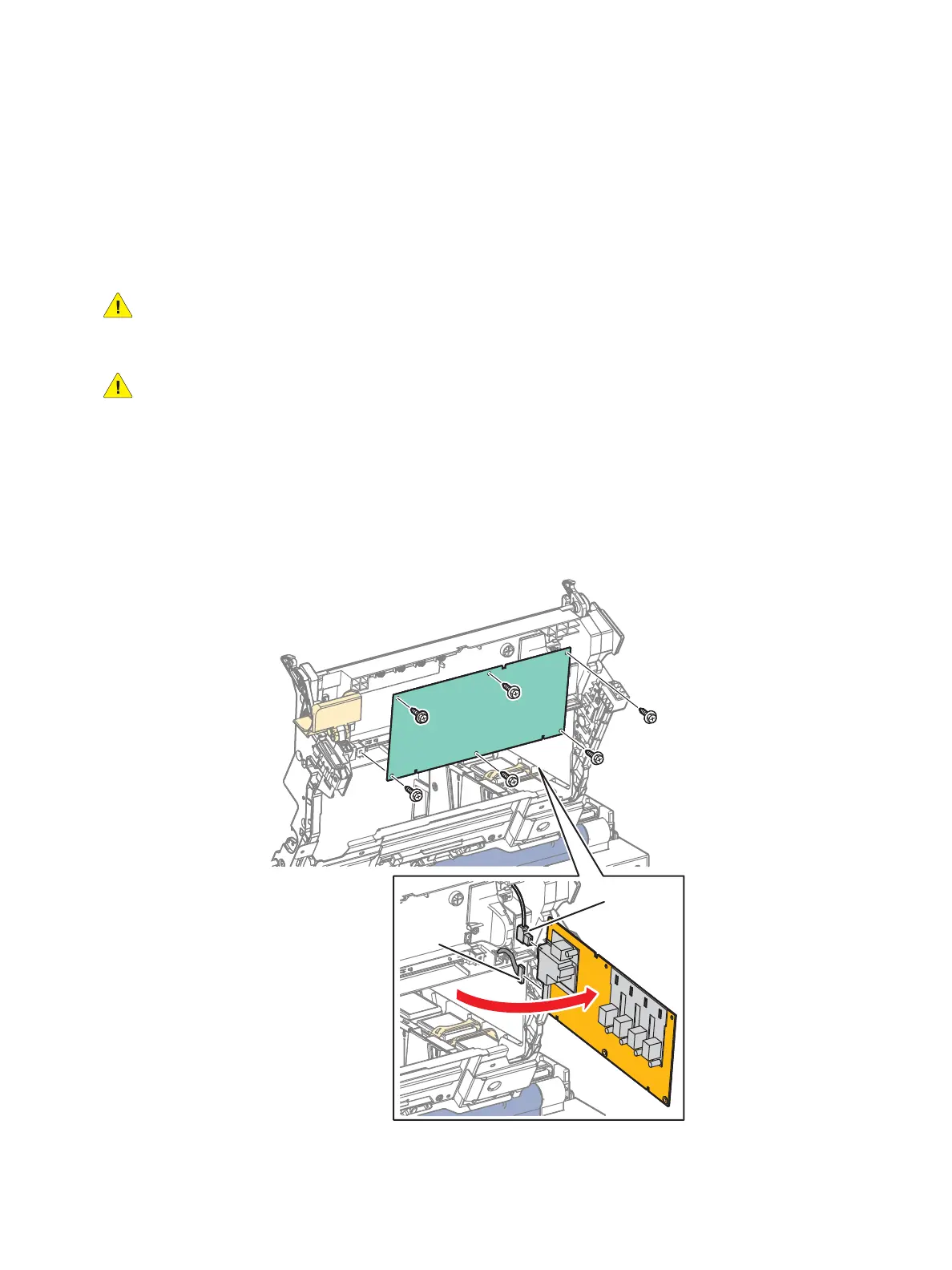

3. Remove 6 screws (silver, tapped, 8 mm) that secure the HVPS2 PWB to the HV Transfer Guide (PL
12.1.12).
4. Open the HVPS2 PWB and disconnect the wiring harness connector P/J552 and Ground connector.
5. Remove the HVPS2 PWB.
s7100-270
P/J552
Rear View
Ground Wire
Connector

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
