Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-295

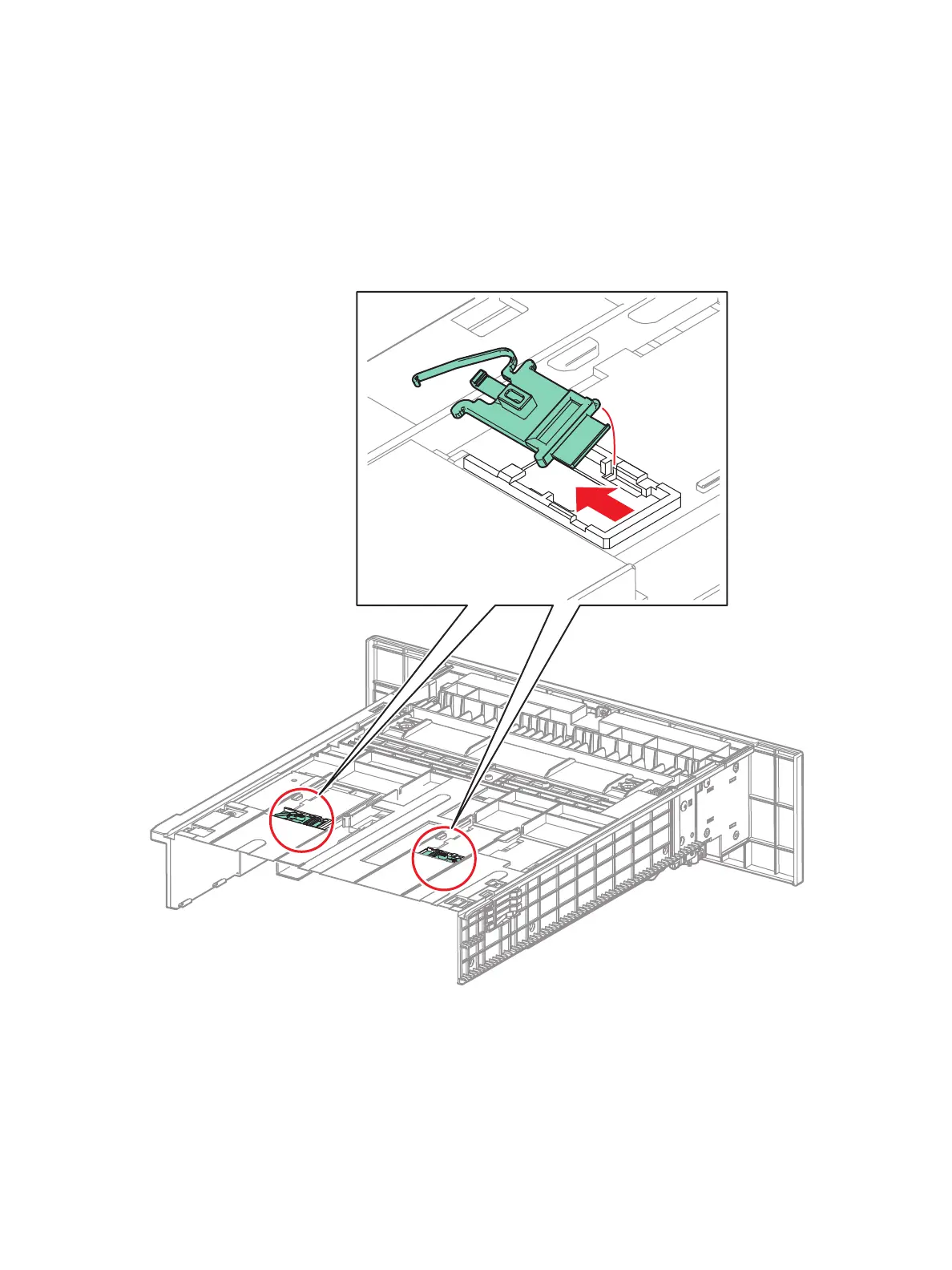

REP 15.29 Exit Lock
PL 15.3.32
1. Remove Tray 2/ 3/ 4.
2. Remove the Exit Housing Assembly (REP 15.27 Exit Housing Assembly on page 4-292).
3. Move the Exit Lock horizontally to slant and remove it.
s7100-085
