Tray 1 Paper Feeder
• Paper Size Switch (Size Switch Holder Assembly) - Detects the paper size in the paper tray, and
whether the paper tray is installed.
• Tray 1 No Paper Sensor - Detects whether paper exists in the paper tray by changes in the
Actuator.
(No paper: Sensor blocked)
• Feed Roller Clutch - Transfers the drive of the Paper Handling Motor to the Feed Roller Assembly.

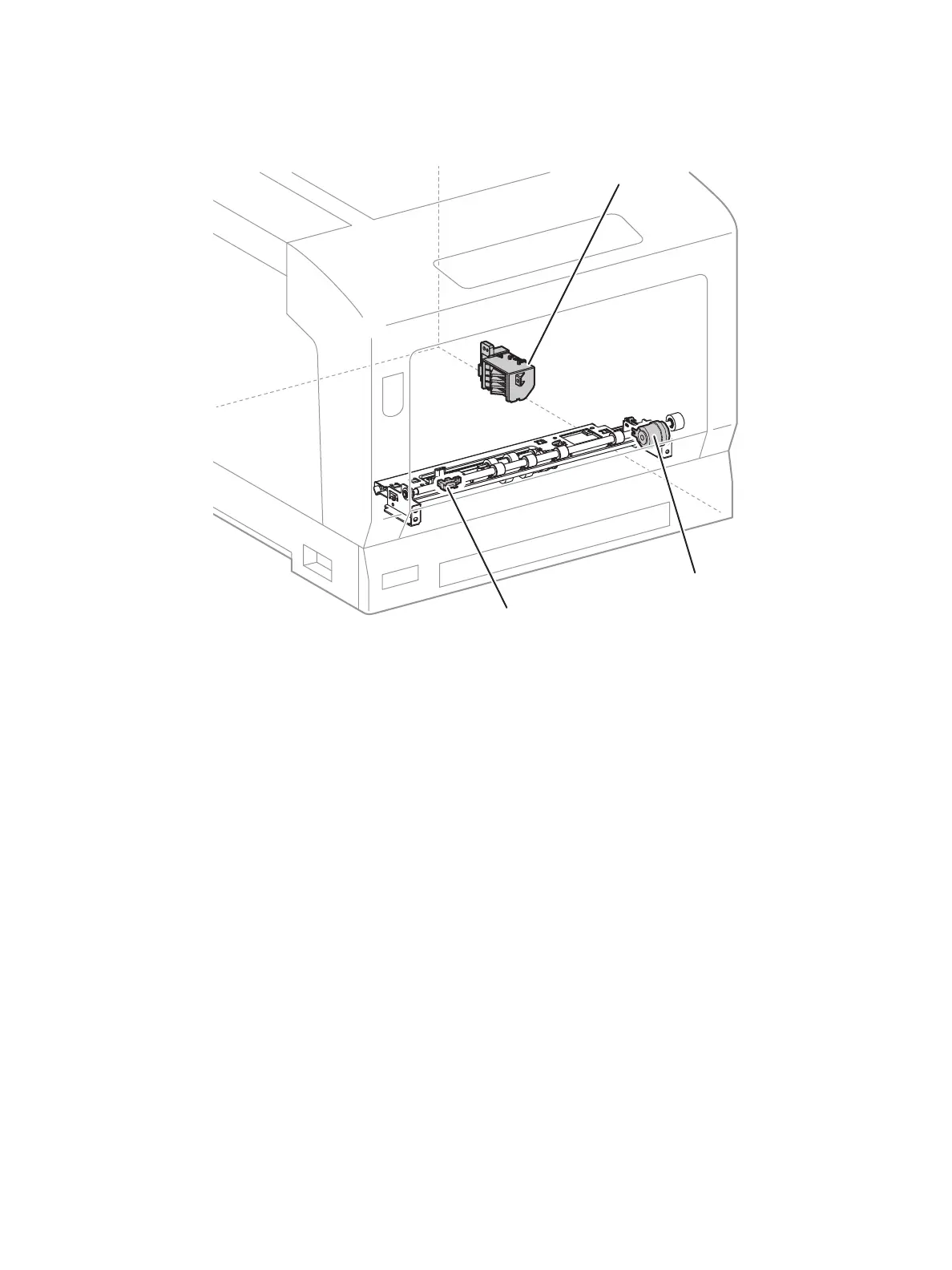

s7100-193
Paper Size Switch
No Paper Sensor
Feed Roller Clutch
