Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-239
Frame

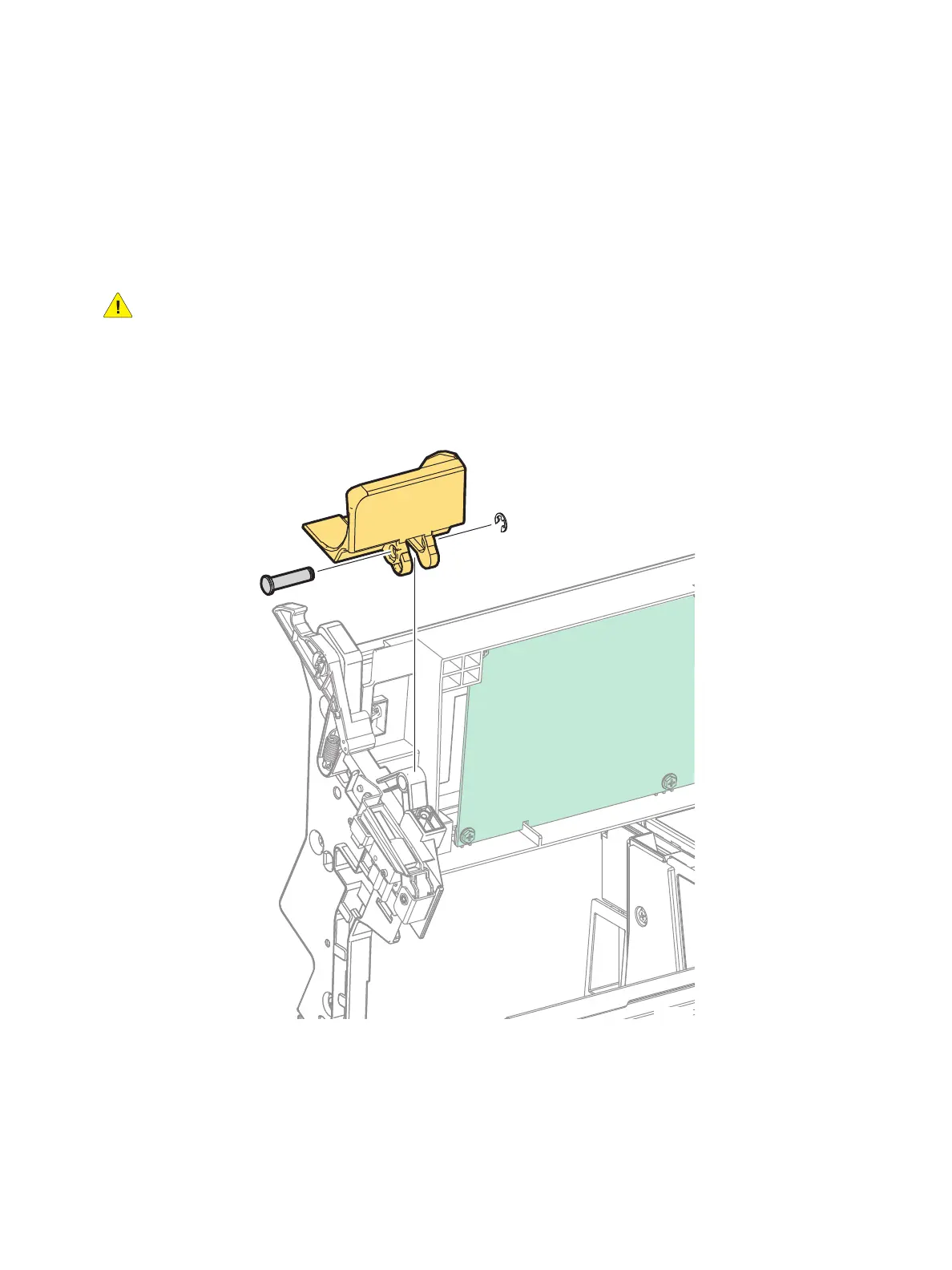

REP 13.1 Top Lever
PL 13.1.4
CAUTION: Do not touch the IBT Belt surface.
1. Remove the IBT Unit (REP 9.10 IBT Unit on page 4-177).
2. Remove the Top Cover Assembly (REP 1.1 Top Cover Assembly on page 4-9).
3. Remove the E-ring that secures the Top Right Shaft (PL 13.1.3).
4. Pull out the Top Right Shaft and remove the Top Lever.
s7100-393
