Xerox Phaser 7100 Service Manual

Plug/Jack and Wiring Diagrams
Xerox Internal Use Only Phaser 7100 Service Manual 7-19

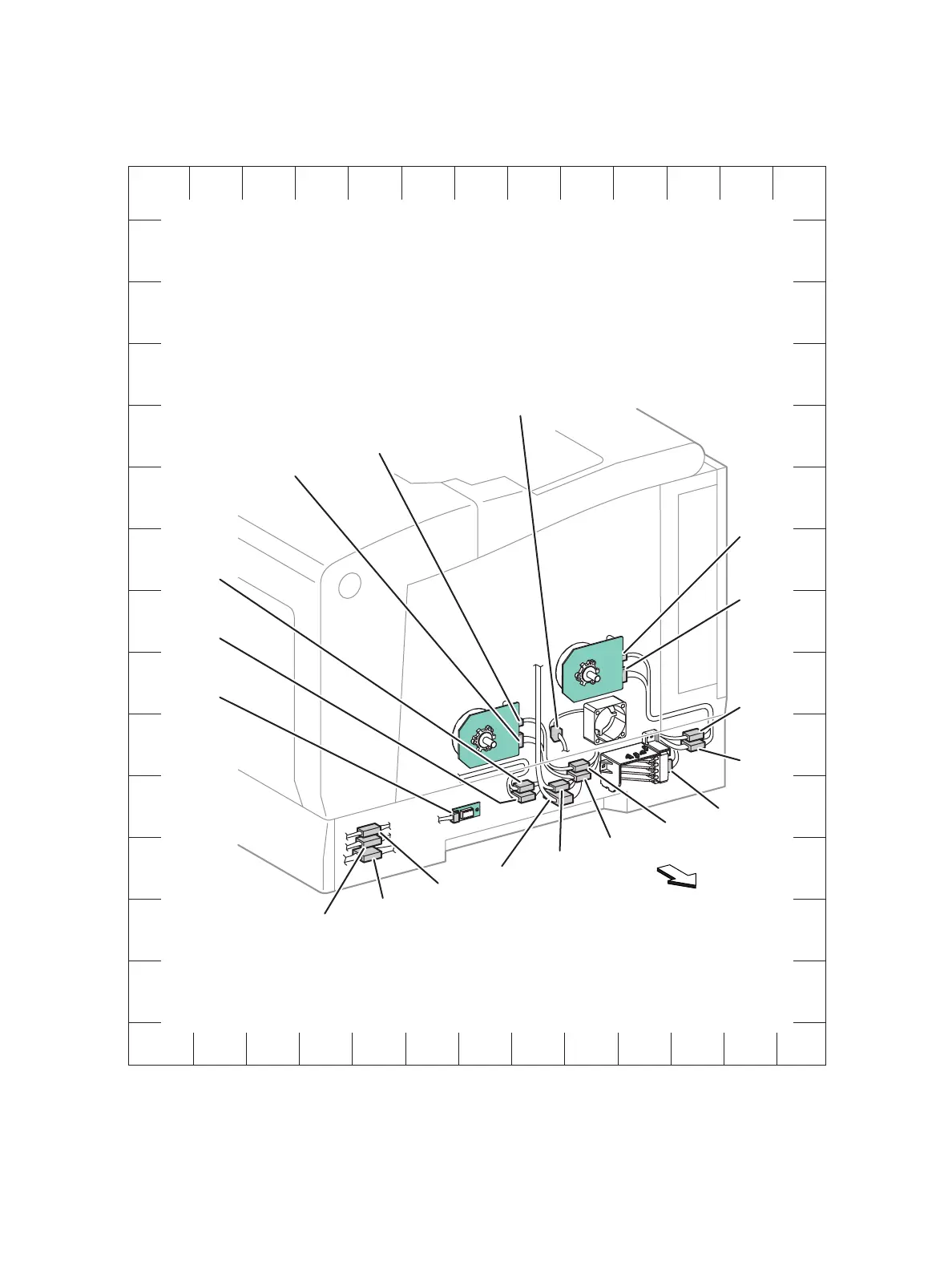

Map 6 - Right Side, Temp/ Humidity Sensor, Size Switch
A
101
102
103
104
105
106
107
108
109
110
111
112
113
114
100
BCDEFGH IJ KL
s7100-179
P/J5243
P/J5244
P/J5245
P/J5246
P/J4652B
P/J4721
P/J4722
P/J4724
P/J4522
P/J4521
P/J4651B
P/J4551
P/J4653A
P/J4761
P/J4751
P/J4671
P/J2711
P/J4723
Right
