REP 6.1 Right Imaging Unit Guide Assembly
PL 6.1.5
CAUTION: Do not expose the Imaging Unit to light for more than 5 minutes. Cover the Imaging
Unit to avoid damage. Do not touch the surface of the Imaging Unit.
1. Remove the Imaging Unit (Y/ M/ C/ K) (REP 6.0 Imaging Unit (Y/ M/ C/ K) on page 4-121).
2. Remove Tray 1.
3. Remove the I/P PWB Cover Assembly (REP 1.5 Image Processor (I/P) PWB Cover Assembly on
page 4-19).
4. Remove the Rear Cover (REP 1.6 Rear Cover on page 4-20).
5. Remove the Right Side Cover (REP 1.11 Right Side Cover on page 4-27).
6. Remove the Right Feeder Cover (REP 2.3 Right Feeder Cover on page 4-40).
7. Release the wiring harness from the Harness Guide.
8. Disconnect the wiring harness connectors P/J4521 and P/J4551 that are connected to the Right
Imaging Unit Guide Assembly.
9. Remove 3 screws (silver, 6mm) that secure the Right Imaging Unit Guide Assembly to the printer.
10. Remove the Right Imaging Unit Guide Assembly.

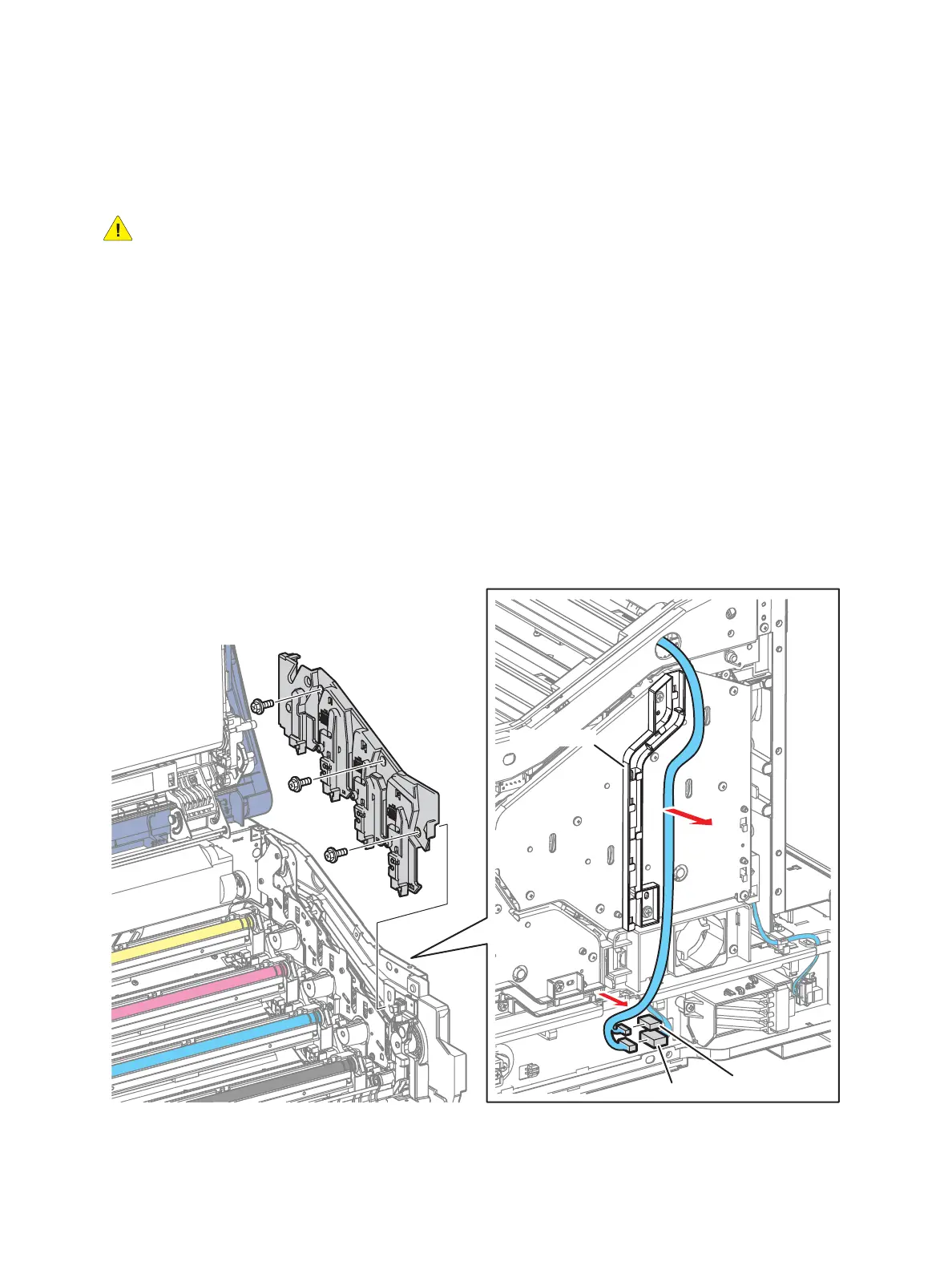

s7100-126
P/J4551
P/J4521
Harness Guide
To Next Page
