Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-51
REP 2.12 Turn Roller Assembly
PL 2.2.1
1. Remove Tray 1.
2. Remove the Bypass Tray Frame Assembly (REP 3.1 Bypass Tray Frame Assembly on page 4-69).
3. Remove the I/P PWB Cover Assembly (REP 1.5 Image Processor (I/P) PWB Cover Assembly on
page 4-19).
4. Remove the Rear Cover (REP 1.6 Rear Cover on page 4-20).
5. Remove the Right Side Cover (REP 1.11 Right Side Cover on page 4-27).
6. Remove the Right Feeder Cover (REP 2.3 Right Feeder Cover on page 4-40).
7. Remove the Protect Cover Assembly (REP 2.7 Protect Cover Assembly on page 4-44).
8. Remove the Right Turn Bracket Assembly (REP 2.4 Right Turn Bracket Assembly on page 4-41).
9. Remove the Feeder Assembly (REP 2.1 Feeder Assembly on page 4-37).

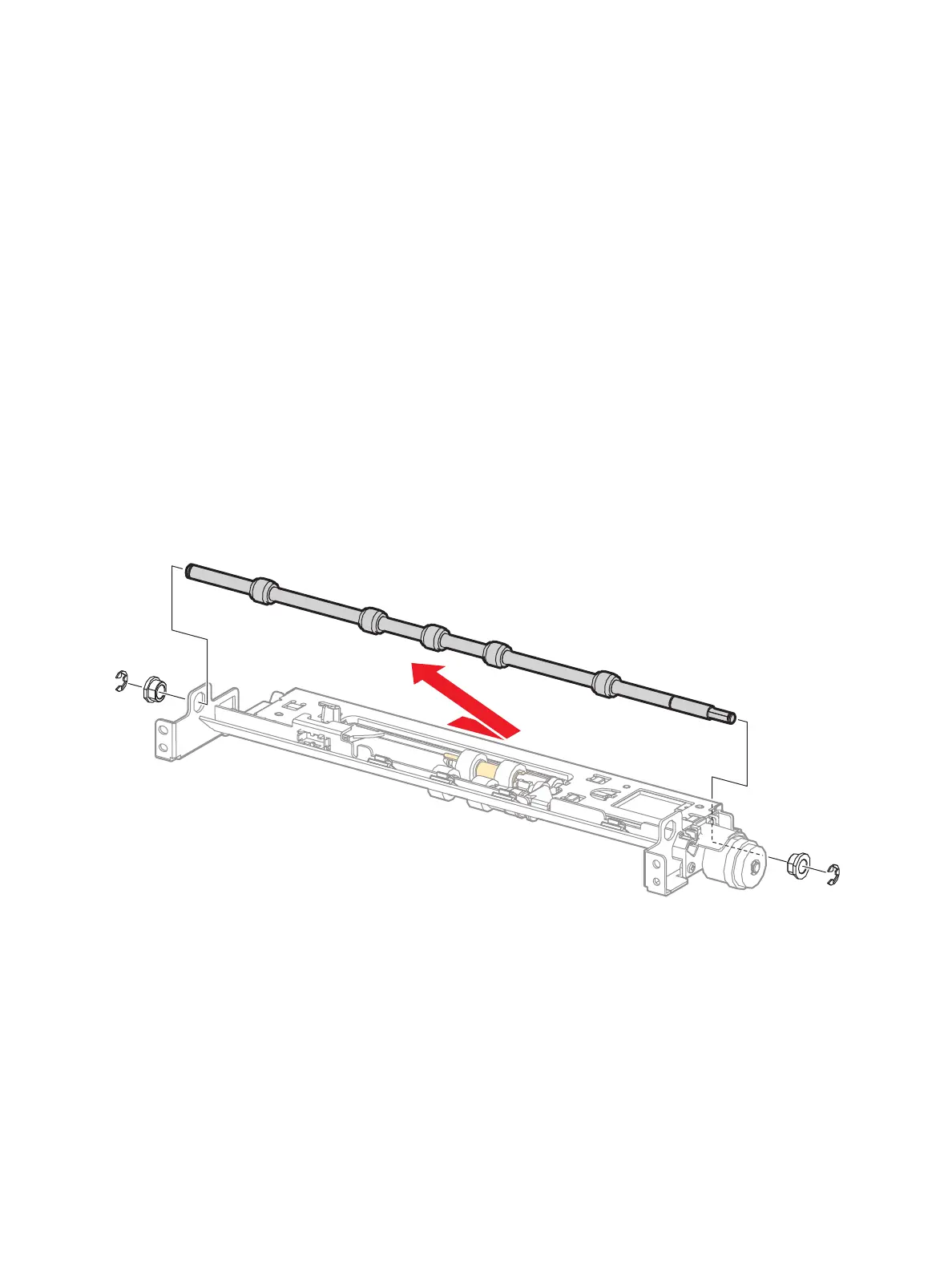

10. Remove the E-rings that secure the left and right Sleeve Bearings (PL 2.2.6).
11. Remove the Sleeve Bearings that secure the Turn Roller Assembly.
12. Slide the Turn Roller Assembly toward the right, free the Shaft from the Sleeve Bearing hole while
lifting the Turn Roller to remove.
