Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-250
REP 14.2 Duplex Motor
PL 14.2.1
1. Remove the Duplex Unit (REP 14.1 Duplex Unit on page 4-249).
2. Remove the Duplex Motor Assembly (REP 14.5 Duplex Motor Assembly on page 4-256).
3. Disconnect the cable of the Duplex Motor Assembly from the Duplex Motor Cover (PL 14.2.3).
4. Remove 2 screws (silver, collared, 6 mm) that secure the Duplex Motor Cover to the Duplex Motor
Bracket (PL 14.2.2) and remove the Duplex Motor Cover.
5. Remove 2 screw (silver, collared, 6 mm) that secure the Duplex Motor to the Duplex Motor Bracket
and remove the Duplex Motor.

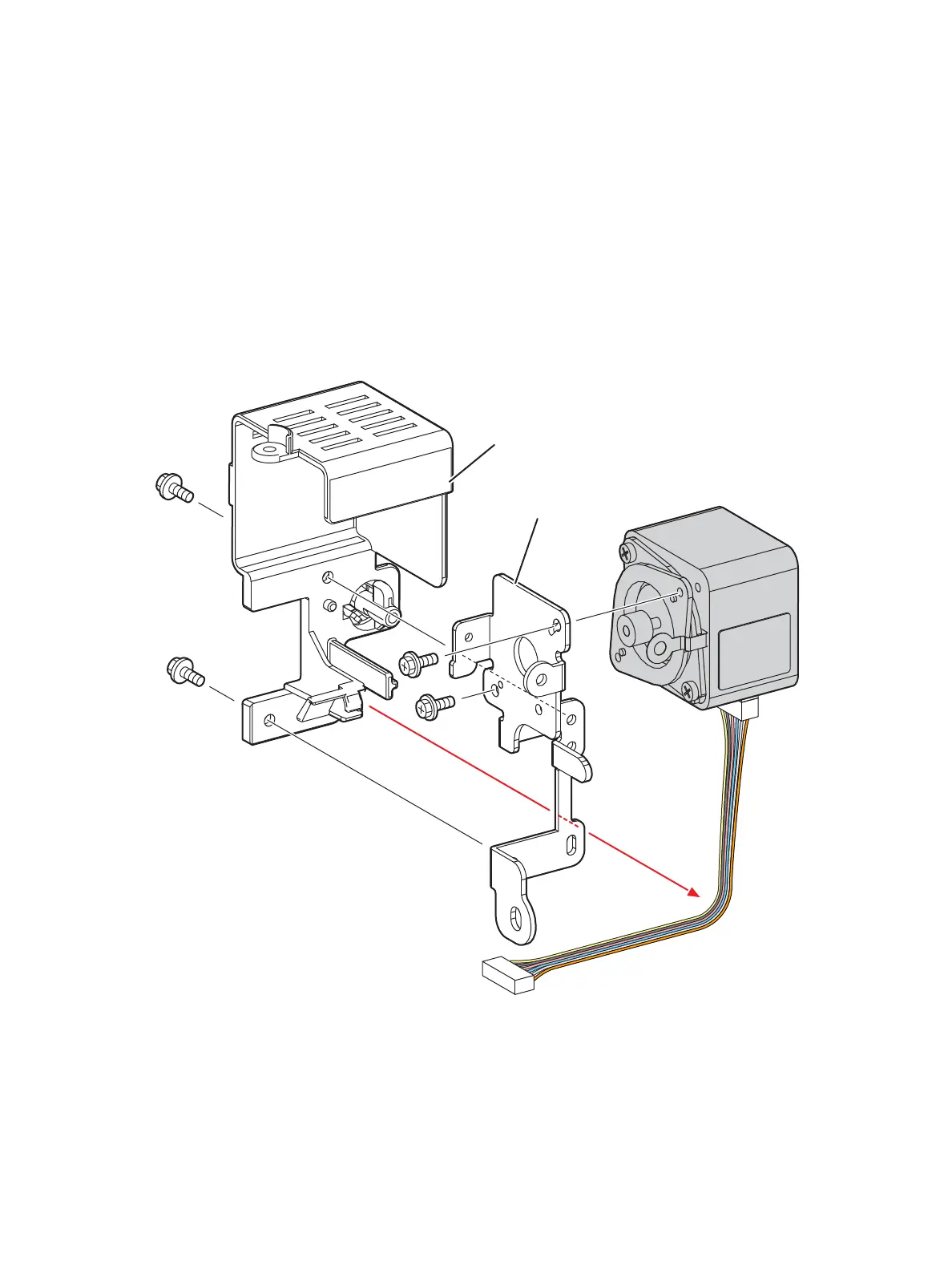

s7100-404
Duplex Motor Cover
Duplex Motor Bracket

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
