Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-256

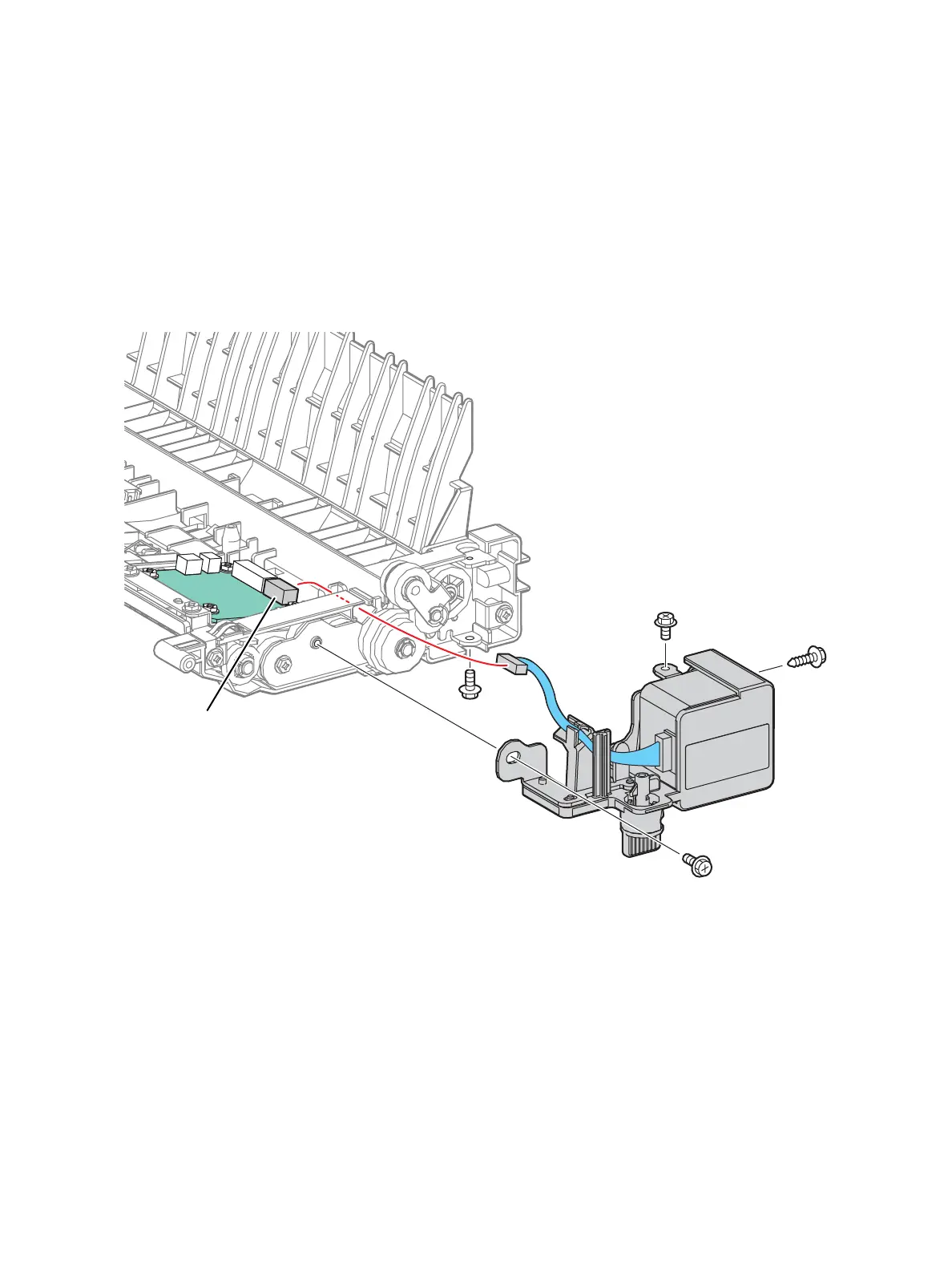

REP 14.5 Duplex Motor Assembly
PL 14.2.98
1. Remove the Duplex Unit (REP 14.1 Duplex Unit on page 4-249).
2. Disconnect the wiring harness connector P/J429 that is connected to the Duplex PWB.
3. Remove one screw (silver, collared, tapped, 8 mm) and 3 screws (silver, collared, 6 mm) that secure
the Duplex Motor Assembly.
4. Remove the Duplex Motor Assembly from the Duplex Unit.
To Next Page
