Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-278
REP 15.16 Oneway Feed Clutch/ Oneway Nudger Clutch
PL 15.2.16/ PL 15.2.17
Note: If only the Oneway Feed Clutch is to be removed, skip steps 1 to 4 and start from step 5 -
Remove the Feed Roller Assembly (REP 15.15 Tray 2/ 3/ 4 Feed Roller on page 4-276).
1. Remove the 550 Left Feeder Cover (REP 15.8 550 Left Feeder Cover on page 4-268).
2. Remove the 550 Right Feeder Cover (REP 15.2 550 Right Feeder Cover on page 4-262).
3. Remove the Protect Cover Assembly (REP 15.5 Protect Cover Assembly on page 4-265).
4. Remove the Feeder Sub Assembly (REP 15.12 Feeder Sub Assembly on page 4-272).
5. Remove the Feed Roller Assembly (REP 15.15 Tray 2/ 3/ 4 Feed Roller on page 4-276).
6. Slide the Oneway Feed Clutch out to remove.
7. Remove the E-Clip that secures the Oneway Nudger Clutch.
8. Remove the Oneway Nudger Clutch.

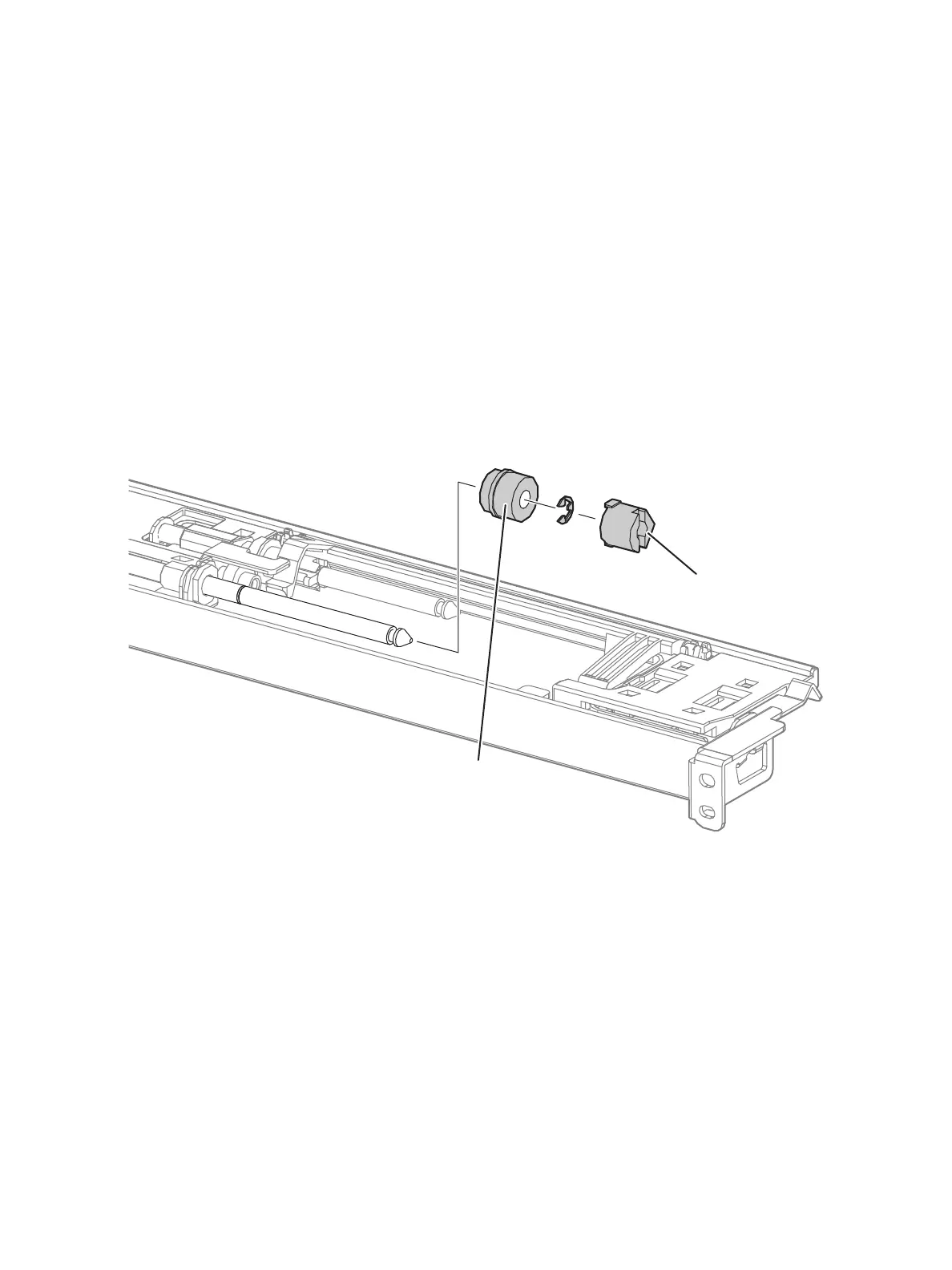

s7100-293
Oneway Nudger Clutch
Oneway Feed Clutch

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
