Error Troubleshooting
Xerox Internal Use Only Phaser 7100 Service Manual 2-15

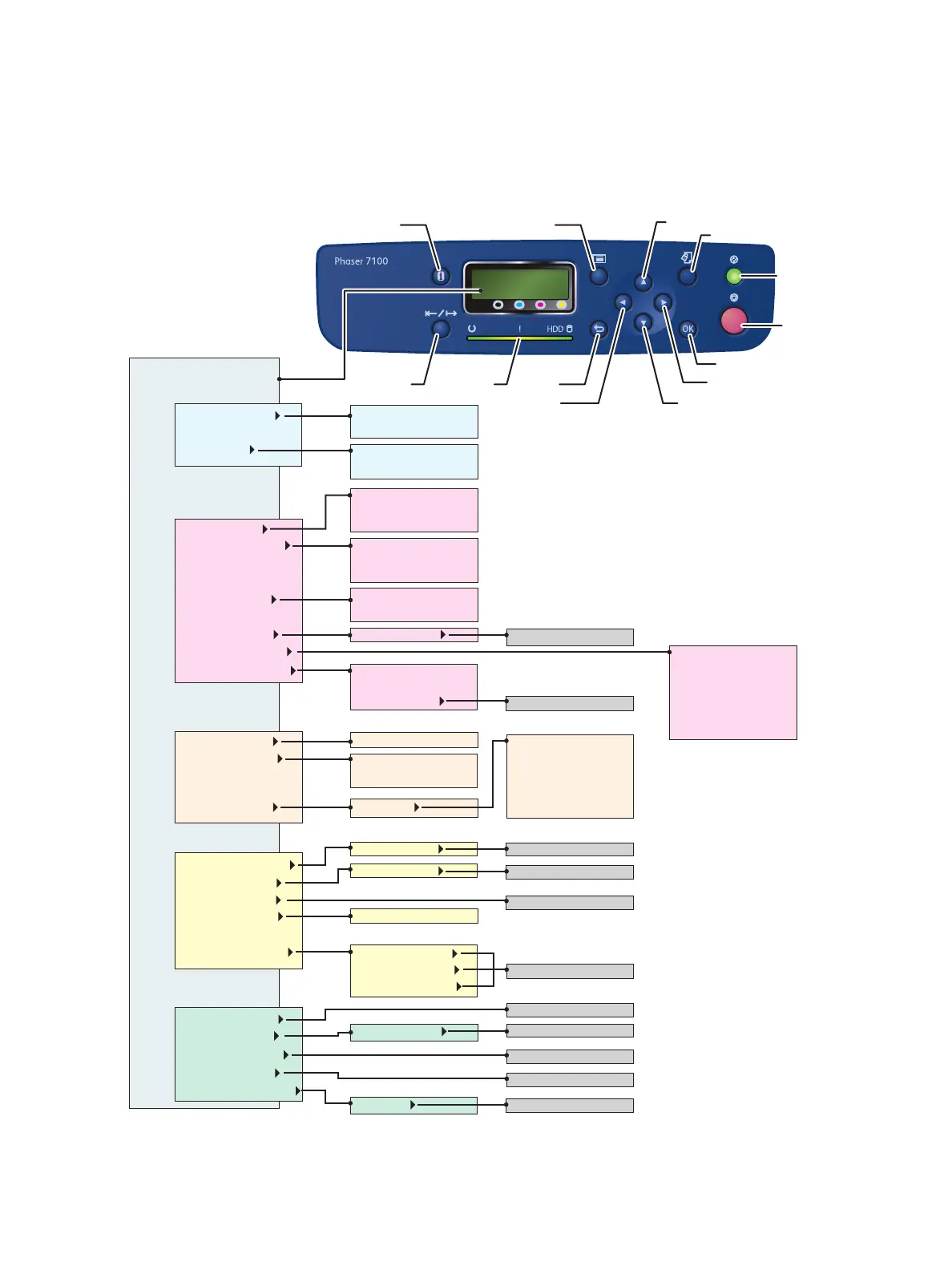

Service Diagnostics Menu Map
The Service Diagnostics menu contains five service diagnostic modes: Preventive Diag, Fault Diag,
Adjustment, Subsystem Check, and Max Setup.
s7100-462
Max Setup
DC924 Adjust TRC
DC937 Pcon Print
DC949 ATC Init Set
DC950 ATC Setup
DC991 Tone Up Down
No Function
No Function
Measured Value
No Function
No Function
No Function
ATC Read
Diagnostics
Preventive Diag
DC122 SDHistory
DC135 HFSI
Paper Jam
Other Faults
Reset Current Val
Change SpecLife
Adjustment
DC131 NVM R/W
DC132 Set Serial**
DC301 NVM Init.
000-000
SYS1:111111
Re-enter Number
Area
-Sys User
-IOT
-Finisher
-Sys System
SysSystem
Fault Diag
DC140 Monitor
DC330 Components
DC355 HD Diag.*
DC402 EEP Check
DC612 Pattern PRT
DC710 No Paper Run
Setup
Predict Fault
Press OK to Run
Pattern
Quantity
Tray
Simp/Dup
Color Mode
Press OK to Run
Quantity
Color Mode
Press OK to Run
Component Input
Component List
Delete All
Component Input
Component List
Delete All
No Function
No Function
Sub System Check
No Function
No Function
No Function
DC671 Regi Measure
DC673 Regi Check
DC675 Regi Setup
DC676 Adjust ROS
DC740 Adjust Guide
Press OK to Run
Minimum Position
Maximum Position
Guide Test Position
No Function
Press OK to Run
Press OK to Run
(*) Available only when HDD installed
(**) Available only when error 124-315 occurs
Power Saver
Cancel
Down Arrow
Up Arrow
Left Arrow
Back
Menu
Right Arrow
OK
Print Menu
Online Indicators
Information
1. Press and hold the Right Arrow.
2. Press and hold the Left Arrow.
3. Release both buttons.
4. Press Online within 3 seconds.
