Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-8

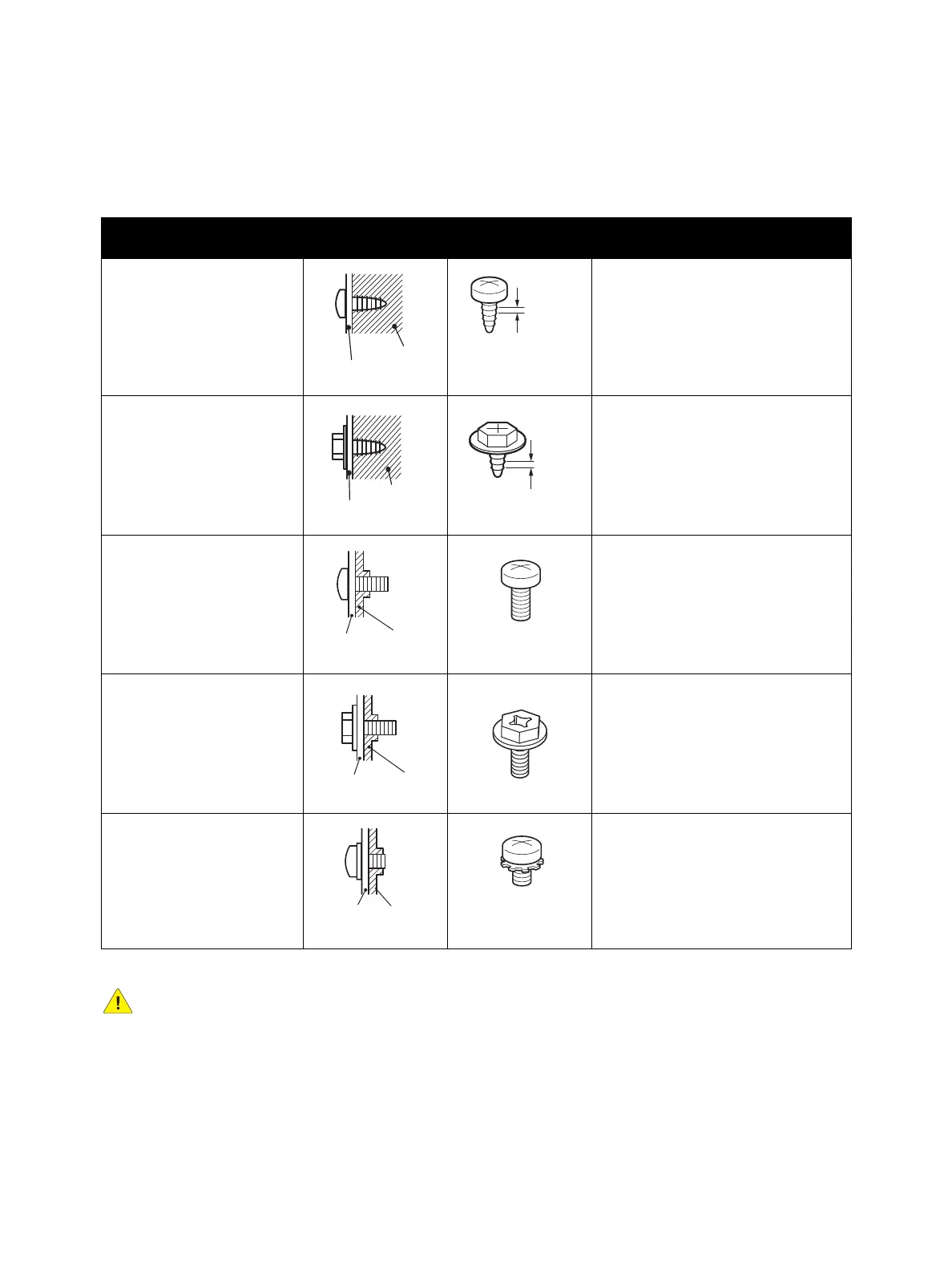

Fastener Types
The following table lists the types of screws used to assemble the printer. The procedures provide
dimensions for screws being removed.
CAUTION: Use care when installing self-tapping screws in plastic. To properly start the screw in
plastic, turn the screw counter-clockwise until you feel the screw engage the threads, then tighten
as usual. Improperly aligning or over tightening the screw can result in damage to previously
tapped threads. Always use the correct type and size screw. Using the wrong screw can damage
tapped holes. Do not use excessive force to remove or install either a screw or a printer part.
Type Application Shape Characteristics
Self-tapping, plastic 1. Silver colored.
2. Screw thread is coarse
compared to metal screw.
3. Screw tip is thin.
Self-tapping, plastic, with
flange
1. Black colored.
2. Screw thread is coarse
compared to metal screw.
3. Screw has a flange.
4. Screw tip is thin.
Sheet Metal, silver 1. Silver colored.
2. Diameter is uniform.
Self-tapping, hex-head,
plastic, with flange
1. Silver colored.
2. Screw has a flange.
3. Diameter is uniform.
Sheet Metal, silver with lock
washer
1. Silver colored.
2. Includes a toothed washer.
3. Diameter is uniform.
4. Used for grounding terminals.
Parts etc.
Plastic
Coarse
Parts etc.
Plastic
Coarse
Parts etc.
Sheet
Metal
Parts etc.
Sheet
Metal
Parts etc.
Sheet
Metal

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
