Xerox Phaser 7100

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-286

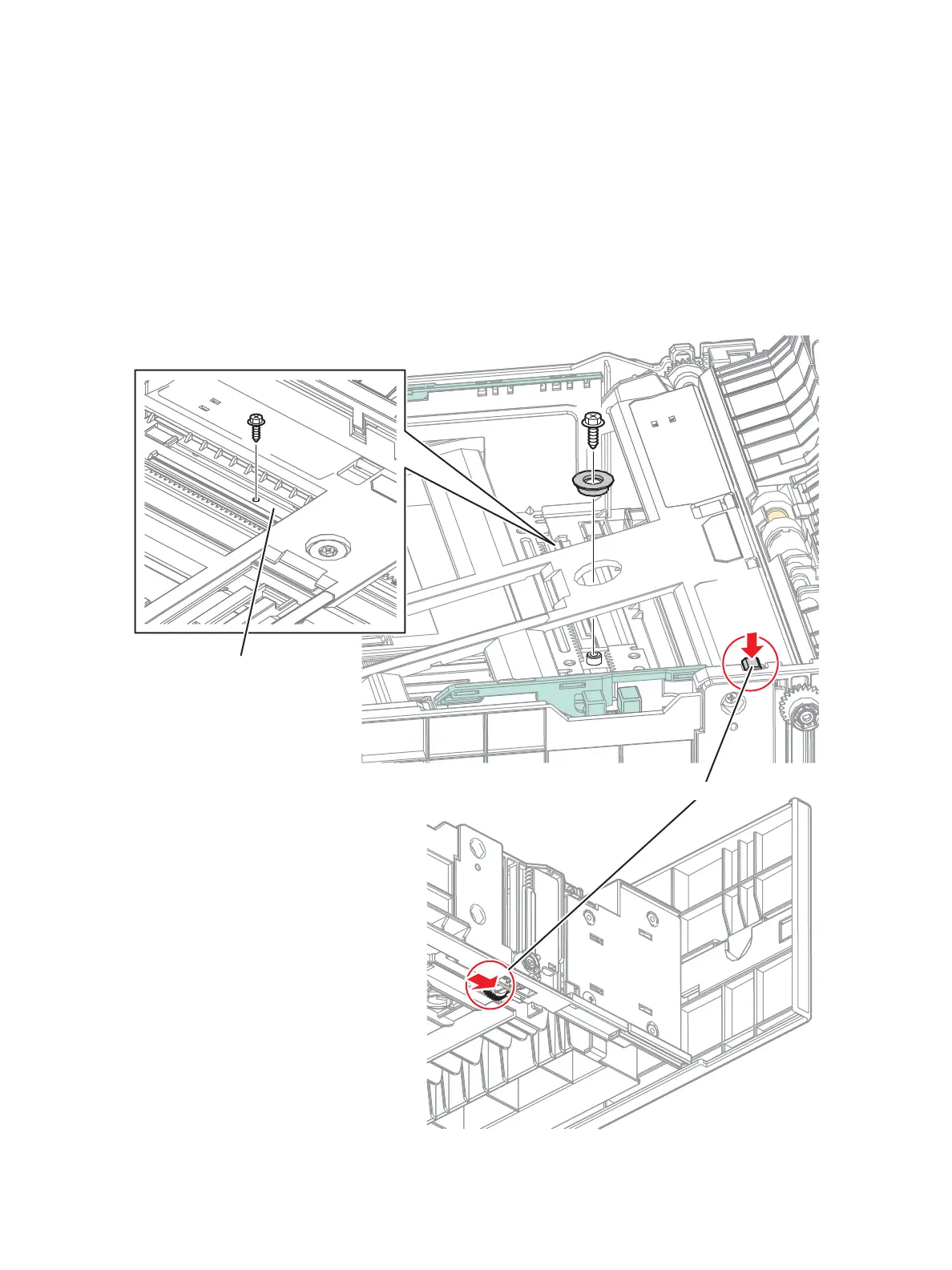

REP 15.23 Right Side Guide/ Left Side Guide
PL 15.3.1/ PL 15.3.3
1. Remove Tray 2/ 3/ 4.
2. Release the 2 Locks and put the Bottom Plate Assembly (PL 15.3.4) into a raised position.
3. Remove one screw (silver, collared, tapped, 8 mm) that secures the Pinion Gear (PL 15.3.2) and
remove the Pinion Gear.
4. Remove the screw that restricts the movement of the Side Guide within the inner side.
Lock Lever
s7100-283
Side Guide
