Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-263

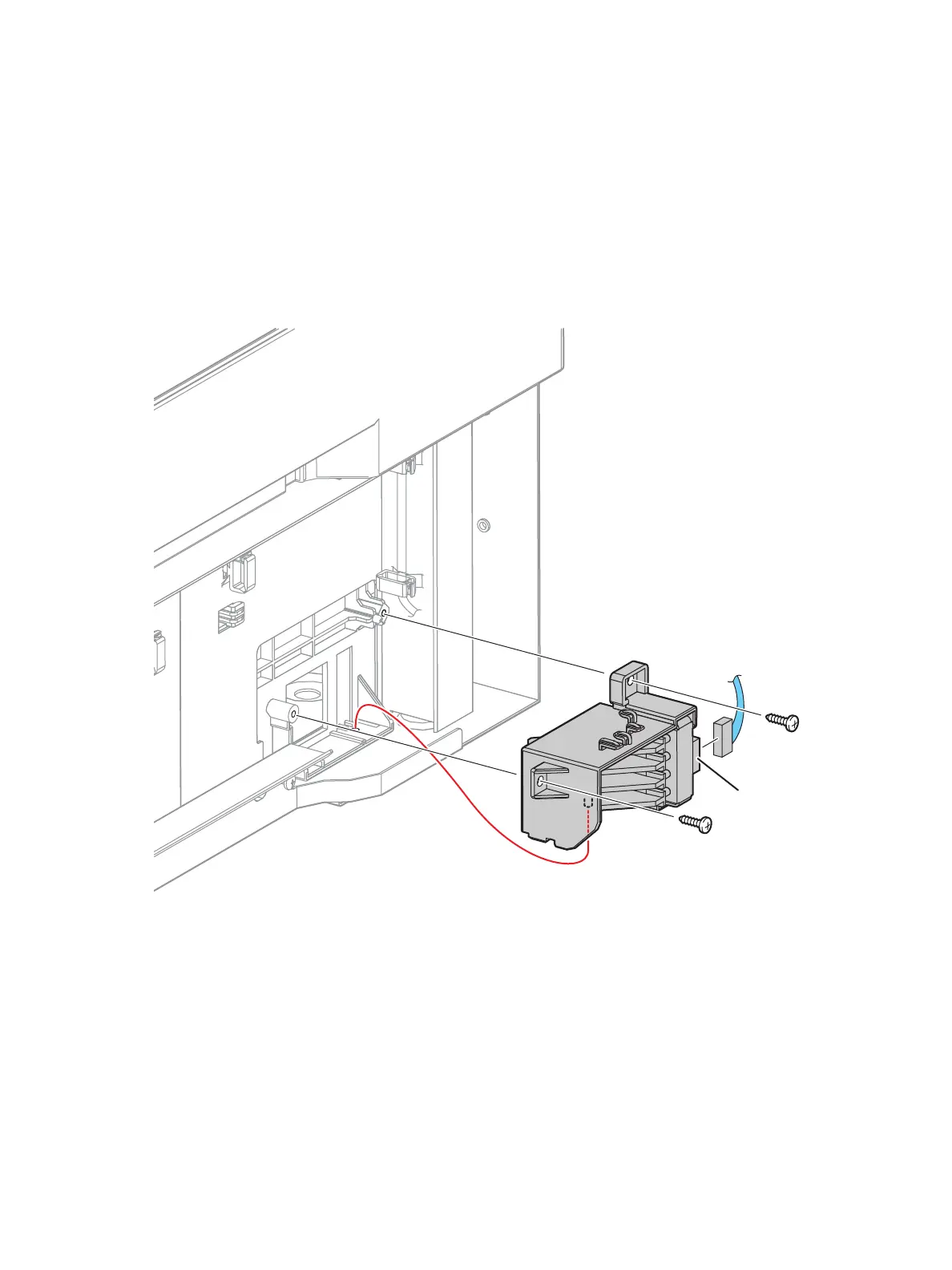

REP 15.3 Size Switch Holder Assembly
PL 15.1.5
1. Remove the Right Feeder Cover (REP 15.2 550 Right Feeder Cover on page 4-262).
2. Disconnect the wiring harness connector P/J124 that is connected to the Size Switch Holder
Assembly.
3. Remove 2 screw (silver, tapped, 8 mm) that secure the Size Switch Holder Assembly to the 550-
Sheet Feeder Assembly and remove the Size Switch Holder Assembly.
