Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-89
REP 4.4 Right/ Left Latch Lever, Latch Spring
PL 4.2.1/ PL 4.2.3/ PL 4.2.4
WARNING: The Fuser may be hot. Turn the printer power Off and allow at least 30 minutes for
the Fuser to cool before servicing the printer.

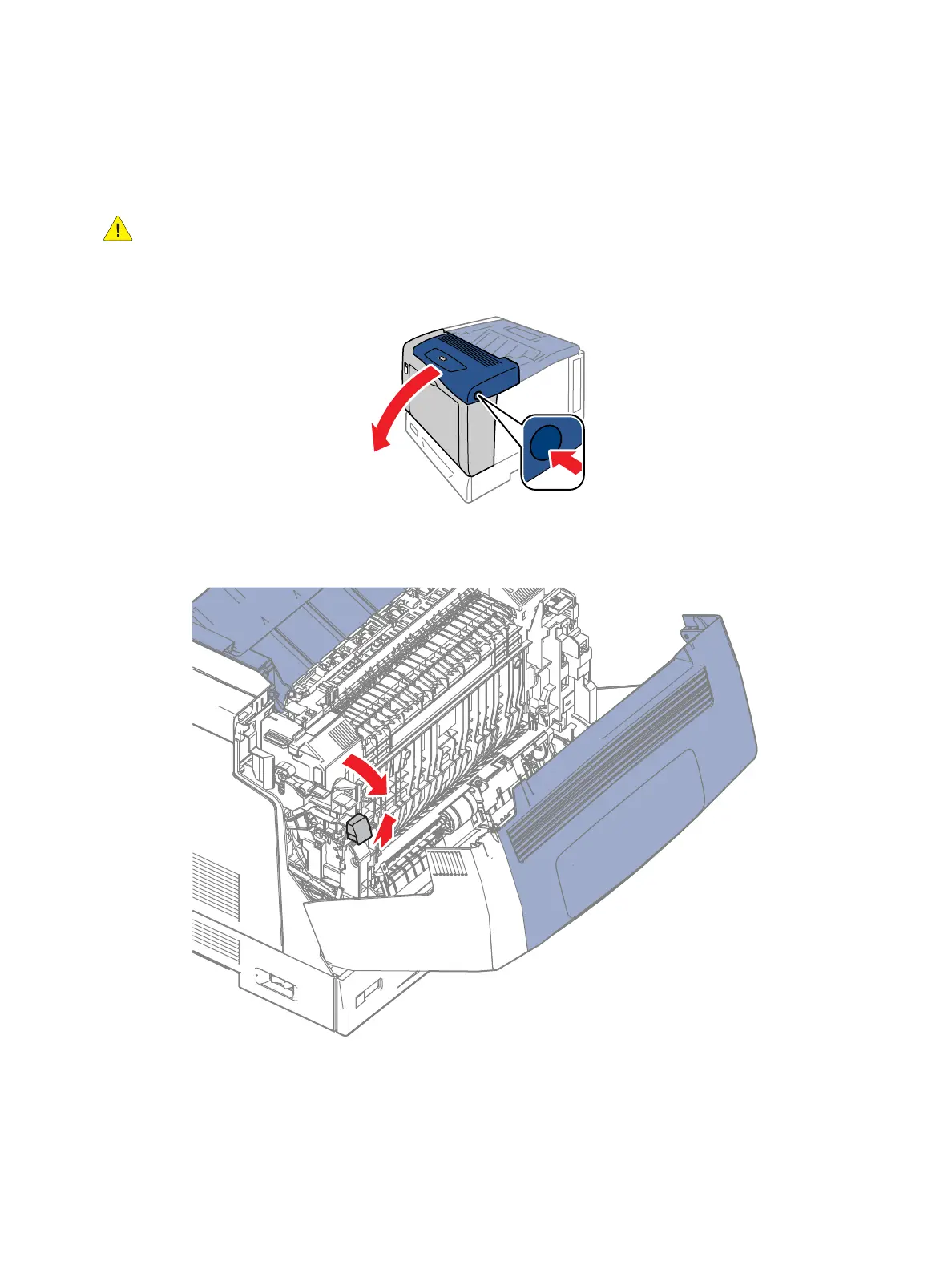

1. Press the B button and open the Front Cover Assembly (PL 1.1.38).
2. Release latch A and open the Front Frame Assembly) (PL 4.1.6) until it is in a position where it is
convenient to perform the operation and maintain that position to perform the subsequent steps.
s7100-253
2
1
s7100-325

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
