Xerox Phaser 7100

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-90

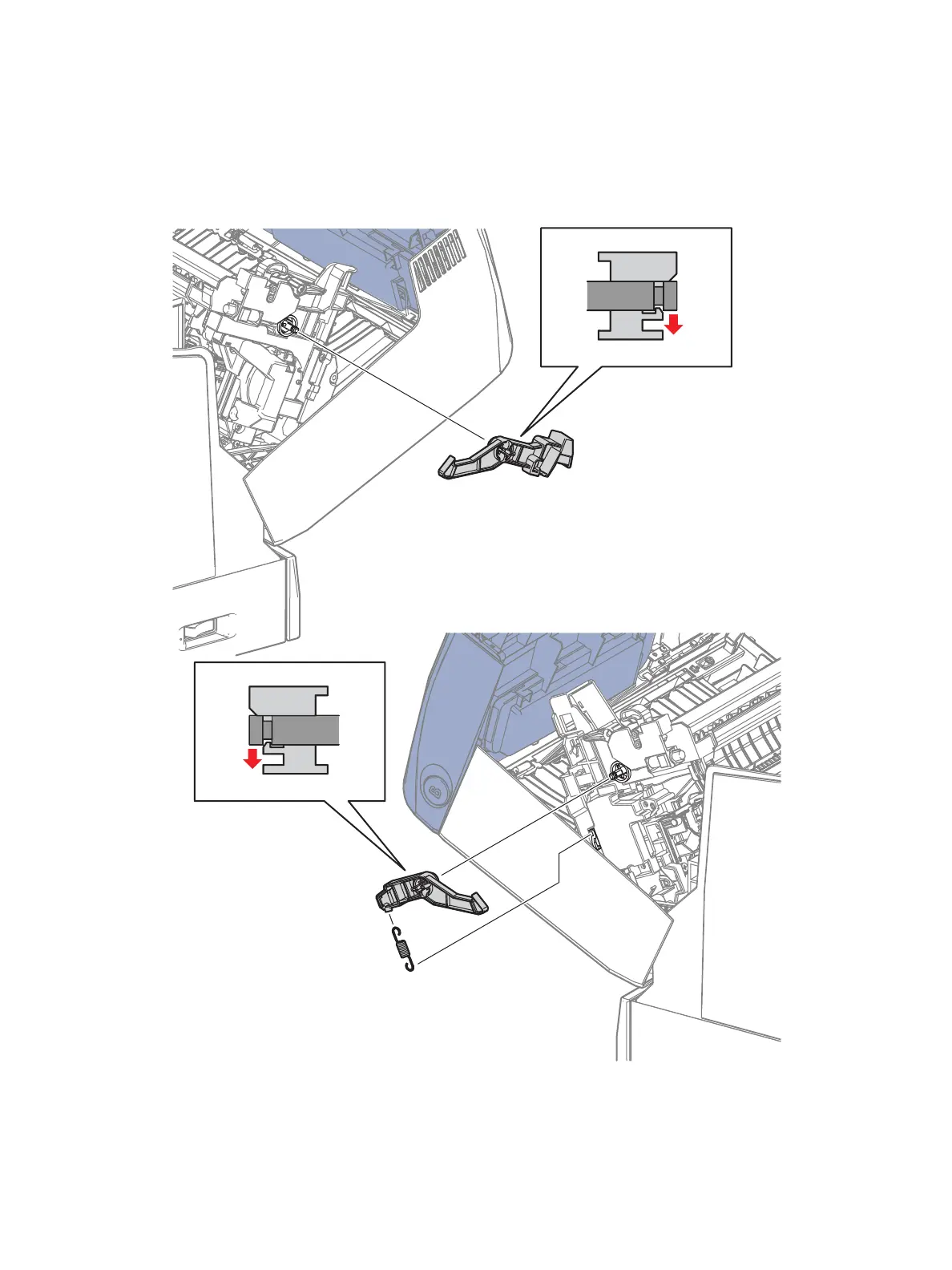

3. Release the hook that secures the Left Latch Lever to the shaft and remove the Left Latch Lever.
4. Release the hook that secures the Right Latch Lever to the shaft and remove the Right Latch Lever
together with the Latch Spring.
5. Remove the Latch Spring from the Right Latch Lever.
s7100-110
