Registration
• Registration Sensor - A reflective Sensor that detects the paper lead edge when it has reached
the Registration section (Registration Chute Assembly).
• Turn Roller Clutch (Turn Clutch Assembly) - Transfers the drive of the Paper Handling Motor to
the Bypass Tray Turn Roller.
• Registration Clutch - Transfers the drive of the Paper Handling Motor to the Rubber Registration
Roller and Metal Registration Roller that are part of the Registration Chute Assembly.

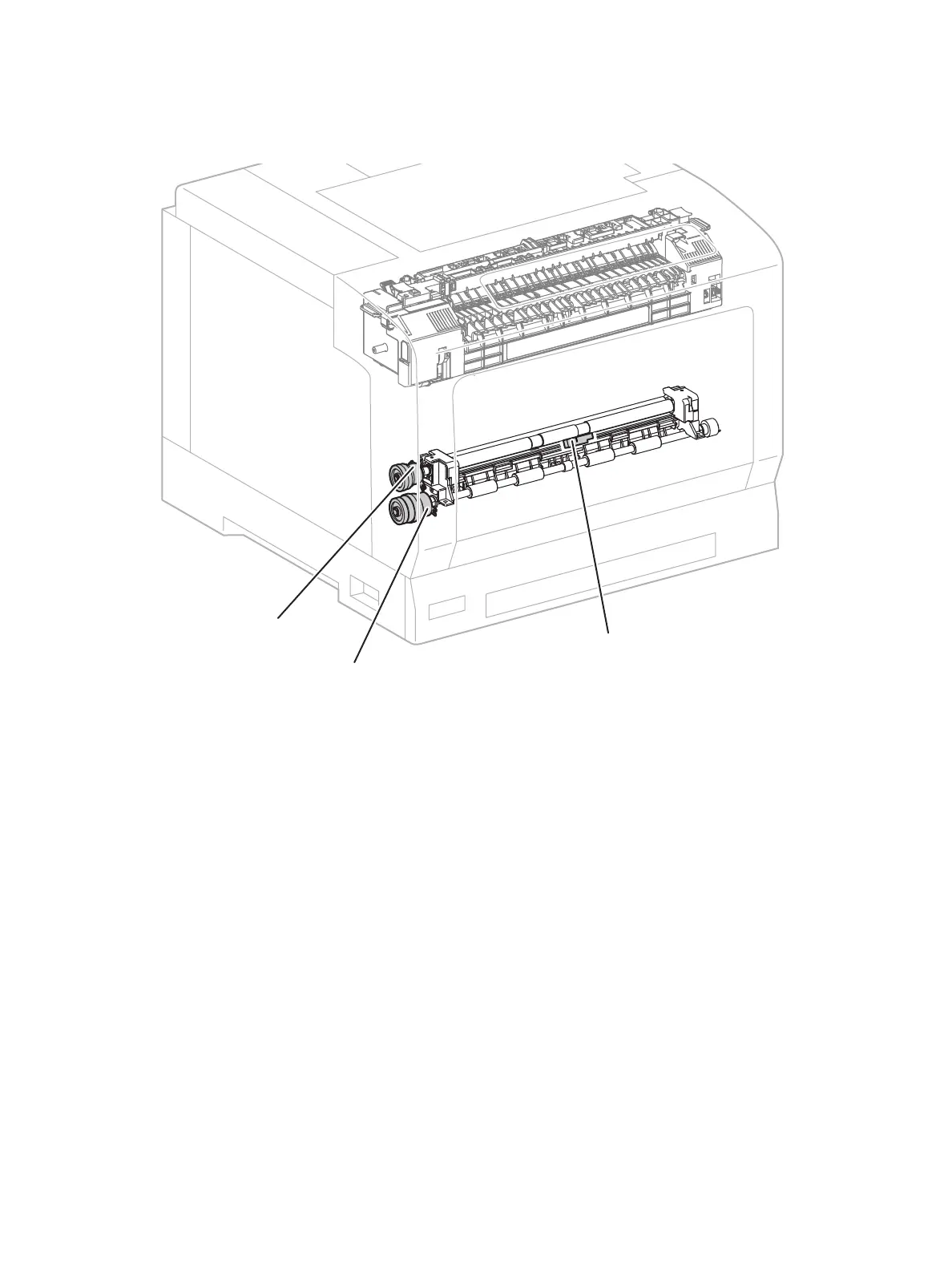

s7100-195
Registration Sensor
Turn Roller Clutch
Registration Clutch

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
