Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-293
REP 15.28 End Guide Assembly
PL 15.3.31
1. Remove Tray 2.
Note: If the paper Tray is loaded with A3 paper, steps 2 and 3 are not required.
2. Release the A4 Exit Locks (PL 15.3.32) and shift the Sub Housing Assembly (PL 15.3.28) to the rear.
3. Pinch and hold the lever of the 550 End Guide Assembly (PL 15.3.31) and align the End Guide
Assembly to the position for A3 Paper Size.

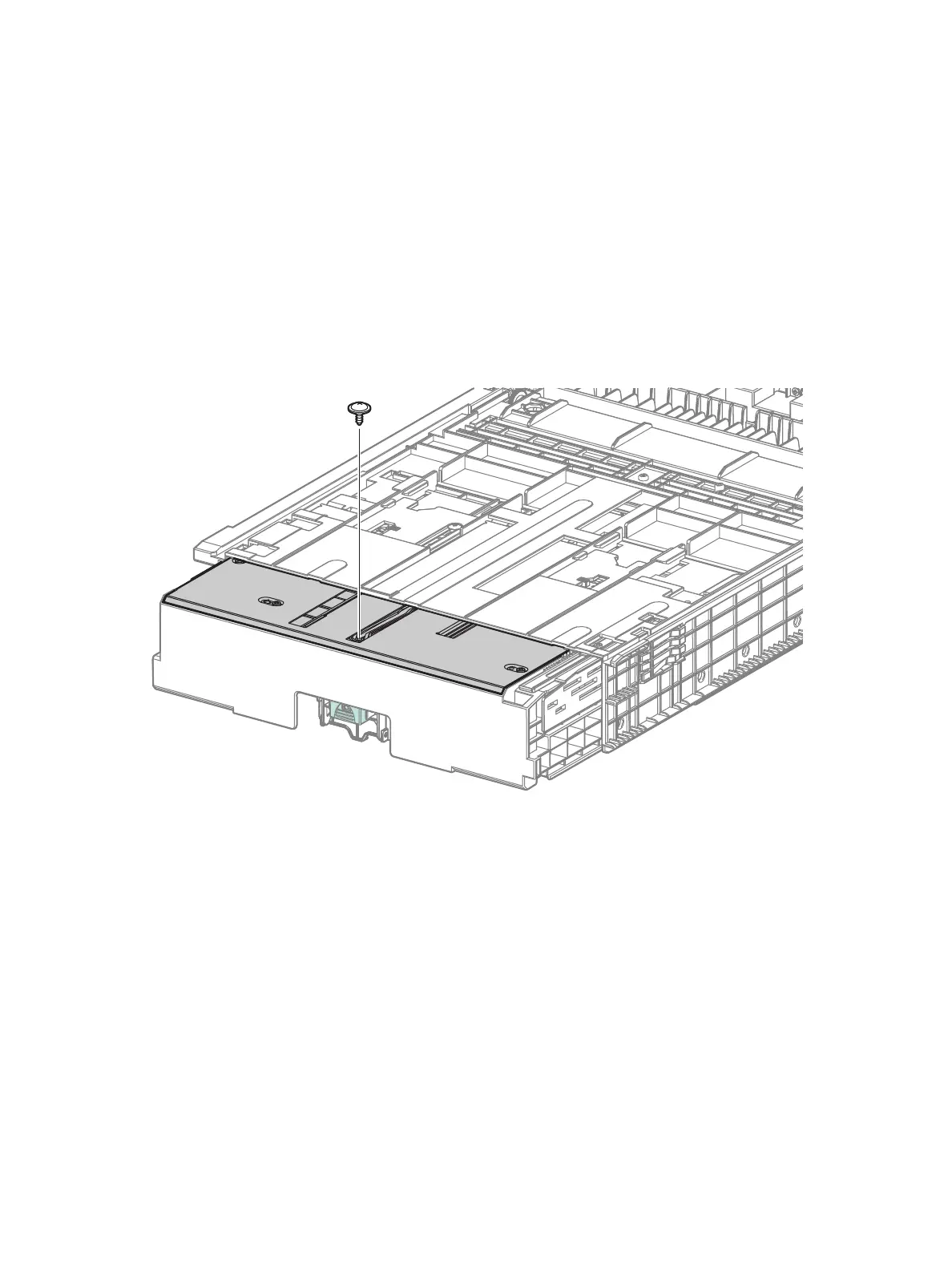

4. Turn the Tray upside down and remove one screw (silver, tapped, 8 mm) that secures the End
Guide Assembly.
To Next Page
