Xerox Phaser 7100 Service Manual

General and Operation Overview
Xerox Internal Use Only Phaser 7100 Service Manual 1-53
Major Assemblies and Functions
Switches
The Phaser 7100 printer contains the following Switches.
• Toner Cover Interlock Switch - Detects if the Toner Cover is open.
• Waste Cartridge Set Switch - Detects the installation of the Waste Cartridge.
• Front Cover Interlock Switch - Informs the LVPS to cut printer power when the Front Cover is
open.
• Front Cover Switch - Informs the MCU PWB when the Front Cover is open.

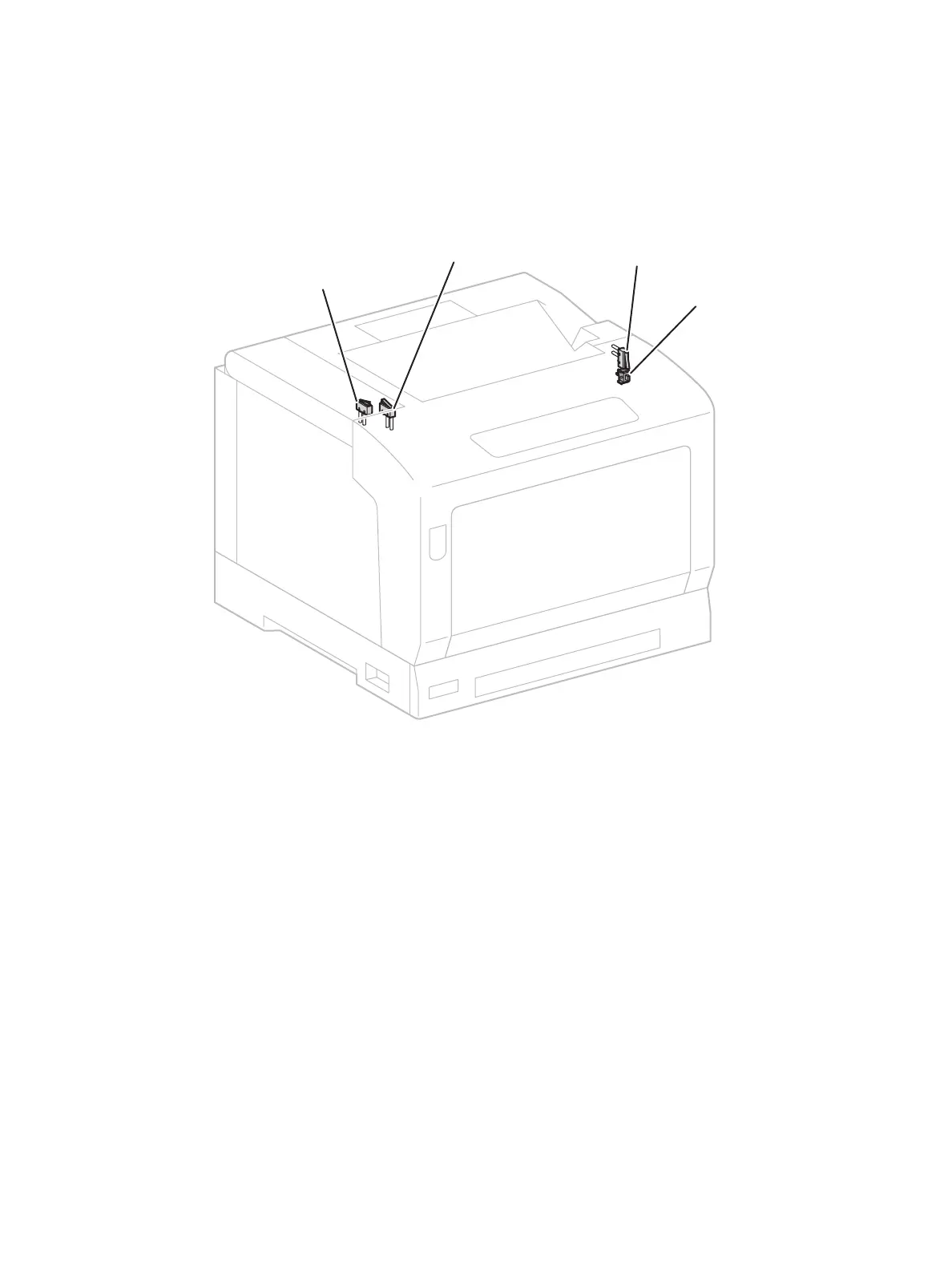

s7100-429
Front Cover Interlock Switch
Waste Cartridge Set Switch
Toner Cover Interlock Switch
Front Cover Switch
