Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-128
REP 6.4 (K) Imaging Unit Guide Assembly
PL 6.1.11
CAUTION: Do not expose the Imaging Unit to light for more than 5 minutes. Cover the Imaging
Unit to avoid damage. Do not touch the surface of the Imaging Unit.
1. Remove the Imaging Unit (Y/ M/ C/ K) (REP 6.0 Imaging Unit (Y/ M/ C/ K) on page 4-121).
2. Remove Tray 1.
3. Remove the I/P PWB Cover Assembly (REP 1.5 Image Processor (I/P) PWB Cover Assembly on
page 4-19).
4. Remove the Rear Cover (REP 1.6 Rear Cover on page 4-20).
5. Remove the Right Side Cover (REP 1.11 Right Side Cover on page 4-27).
6. Remove the Right Feeder Cover (REP 2.3 Right Feeder Cover on page 4-40).
7. Remove the Right Imaging Unit Guide Assembly (REP 6.1 Right Imaging Unit Guide Assembly on
page 4-123).

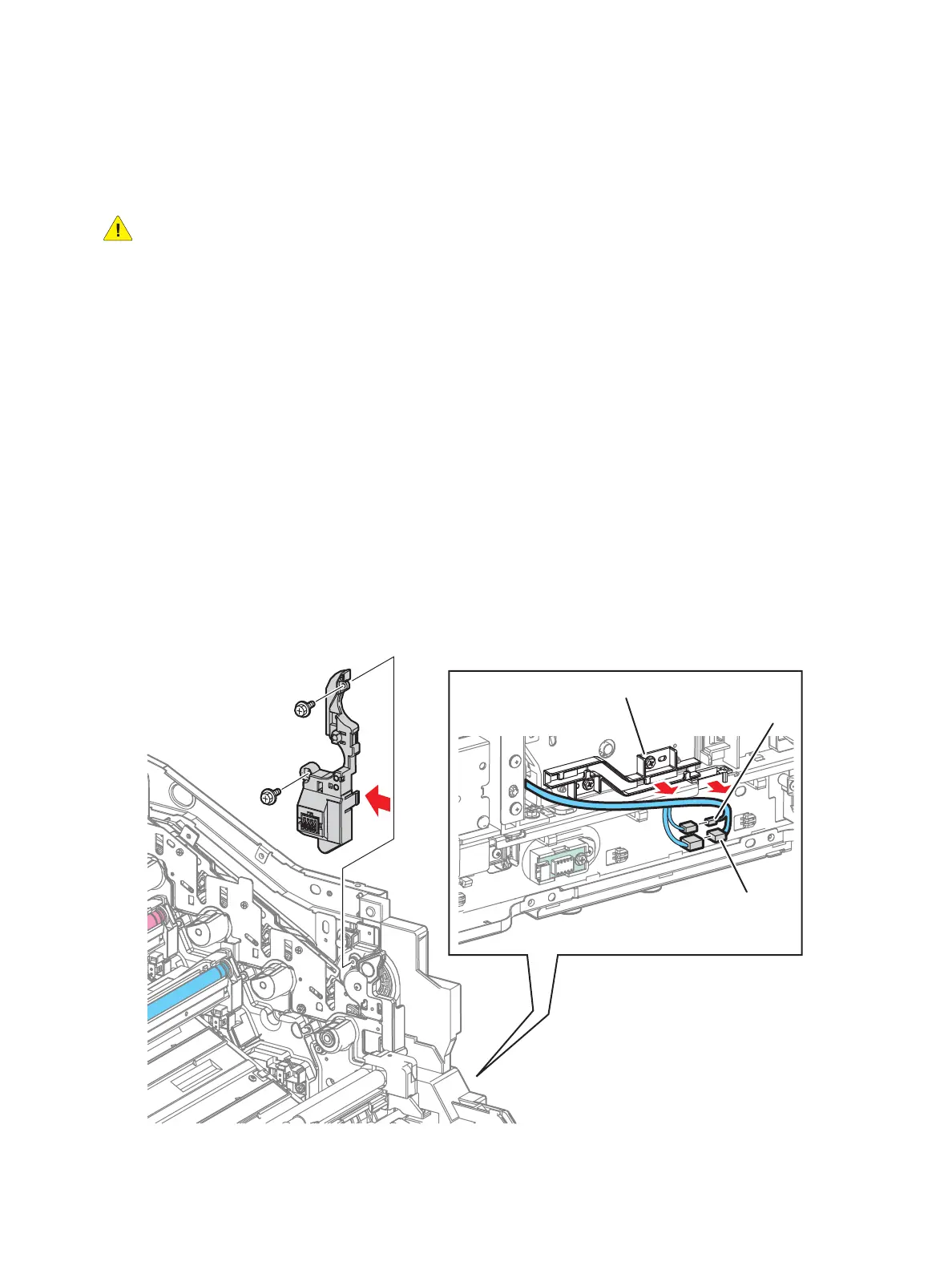

8. Release the wiring harness from the Harness Guide.
9. Disconnect the 2 wiring harness connectors P/J4522 and P/J4761 that are connected to the (K)
Imaging Unit Guide Assembly.
10. Remove 2 screws (silver, 6 mm) that secure the (K) Imaging Unit Guide Assembly to the printer.
11. Release the hook that secures the (K) Imaging Unit Guide Assembly to the printer and remove the
K Imaging Unit Guide Assembly.
s7100-129
P/J4522
Harness Guide
P/J4761
To Next Page
