Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-271

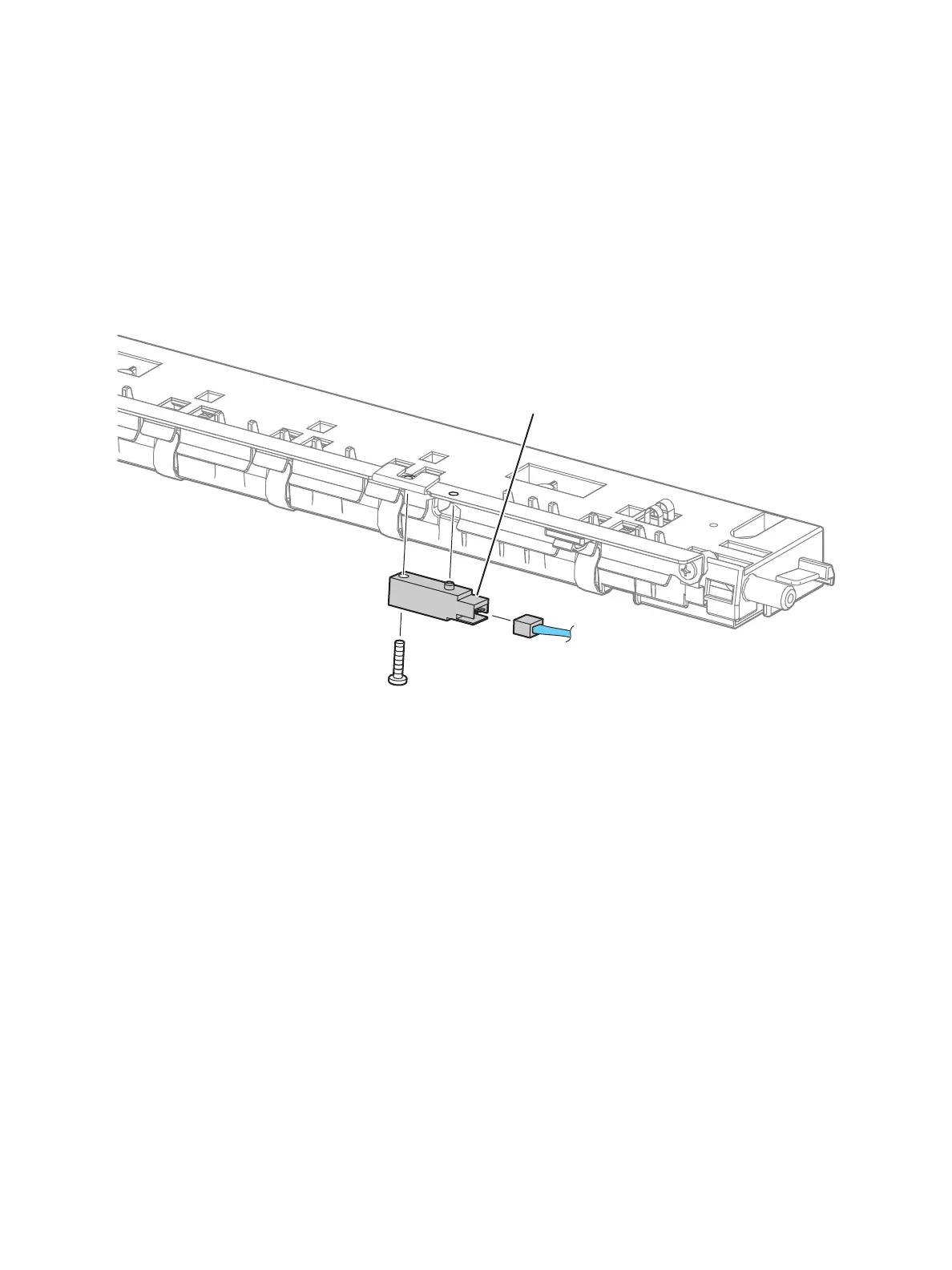

REP 15.11 Paper Jam Sensor
PL 15.2.3
1. Remove the 550 Left Feeder Cover (REP 15.8 550 Left Feeder Cover on page 4-268).
2. Remove the Turn Chute Assembly (REP 15.10 Turn Chute Assembly on page 4-270).
3. Remove one screw (silver, 12 mm) that secures the Paper Jam Sensor and remove the Sensor.
4. Disconnect the wiring harness connector P/J122 that is connected to the Paper Jam Sensor to
remove the Sensor.
To Next Page
