Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-264
REP 15.4 550 Right Tray Guide
PL 15.1.6
1. Remove Tray 2/ 3/ 4.
2. Remove the Tray Cover (REP 15.9 Tray Cover on page 4-269).
3. Remove the 550 Left Feeder Cover (REP 15.8 550 Left Feeder Cover on page 4-268).
4. Remove the 550 Right Feeder Cover (REP 15.2 550 Right Feeder Cover on page 4-262).
5. Remove the Turn Chute Assembly (REP 15.10 Turn Chute Assembly on page 4-270).
6. Remove the Size Switch Holder Assembly (REP 15.3 Size Switch Holder Assembly on page 4-263).
7. Remove the Protect Cover Assembly (REP 15.5 Protect Cover Assembly on page 4-265).
8. Remove 2 screw (silver, tapped, 8 mm) that secure the 550 Right Tray Guide.

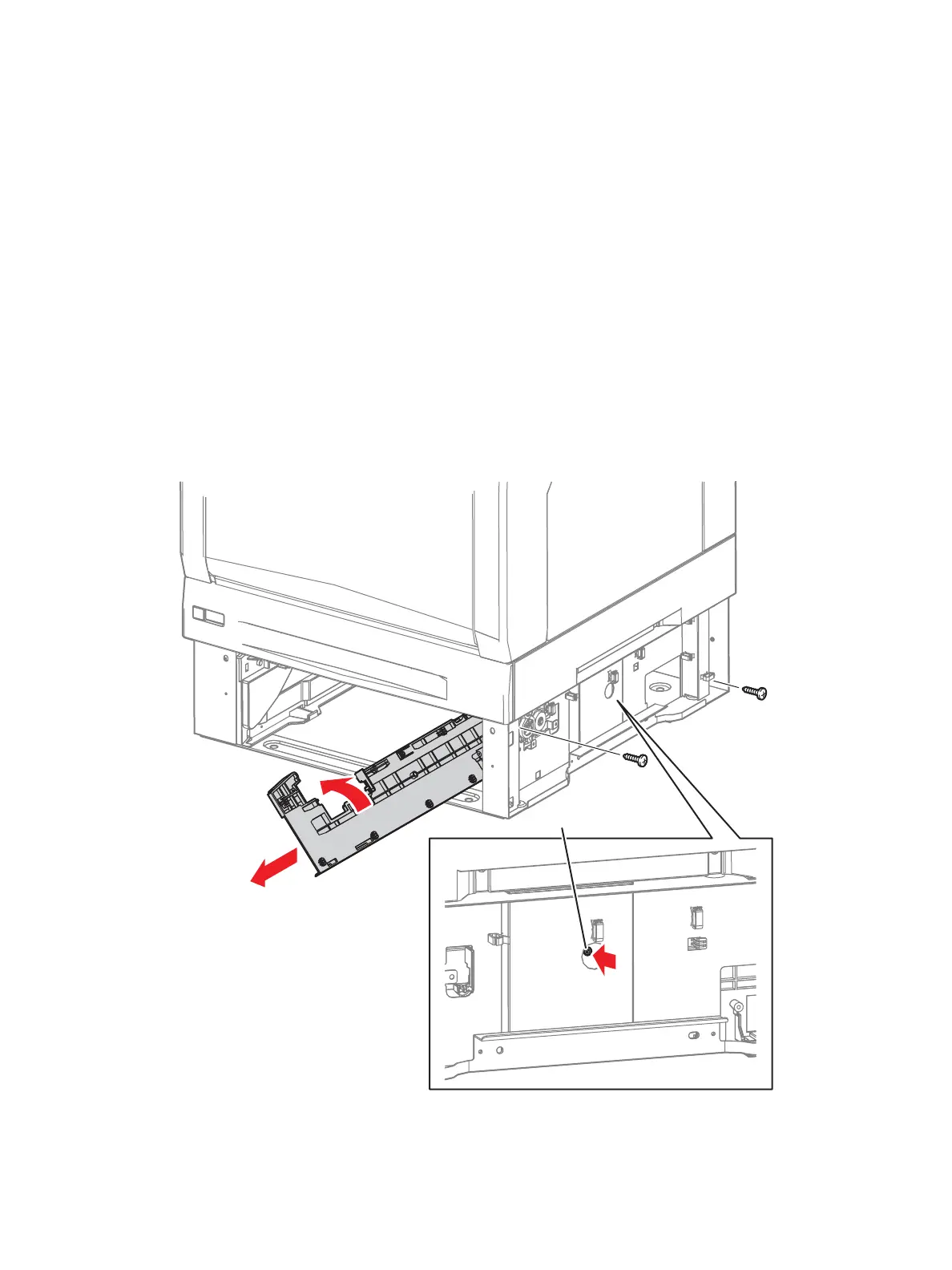

9. While releasing the hook of Right Tray Guide, shift the Right Tray Guide temporarily to the front,
release the 7 hooks from the hole and continue to shift the Right Tray Guide until it is laid down
horizontally to remove it.
s7100-118
Hook

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
