Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-73

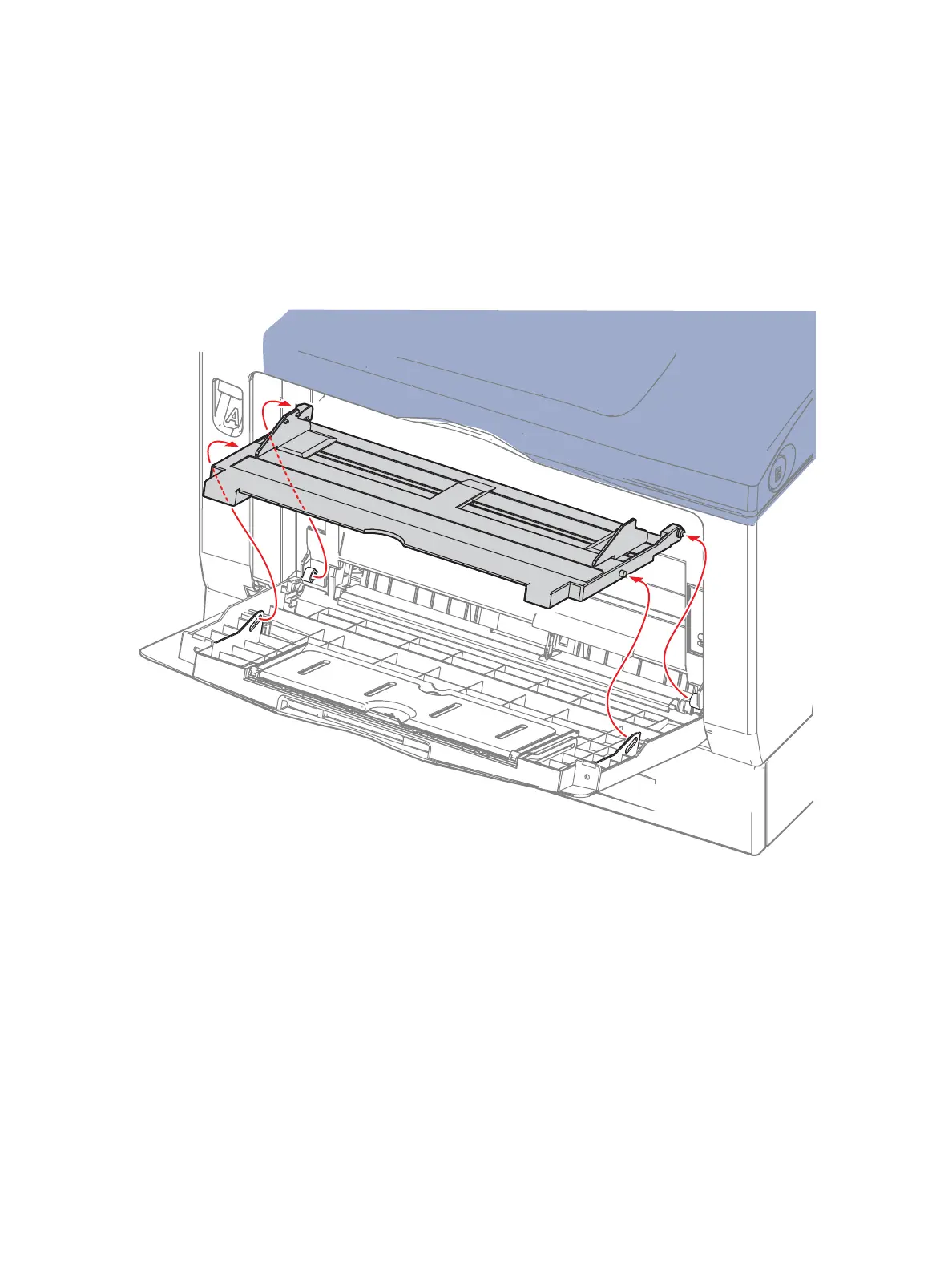

REP 3.5 Bypass Tray Assembly
PL 3.1.20
1. Open the Bypass Tray Cover Assembly (PL 3.1.9).
2. Release the 2 bosses on the front of the Bypass Tray Assembly from the Bypass Tray Cover.
3. Release the 2 bosses on the rear of the Bypass Tray Assembly from Bypass Tray Cover and remove
the Bypass Tray Assembly.
s7100-091
