Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-280
REP 15.18 Turn Roller Clutch
PL 15.2.25
1. Remove the 550 Left Feeder Cover (REP 15.8 550 Left Feeder Cover on page 4-268).

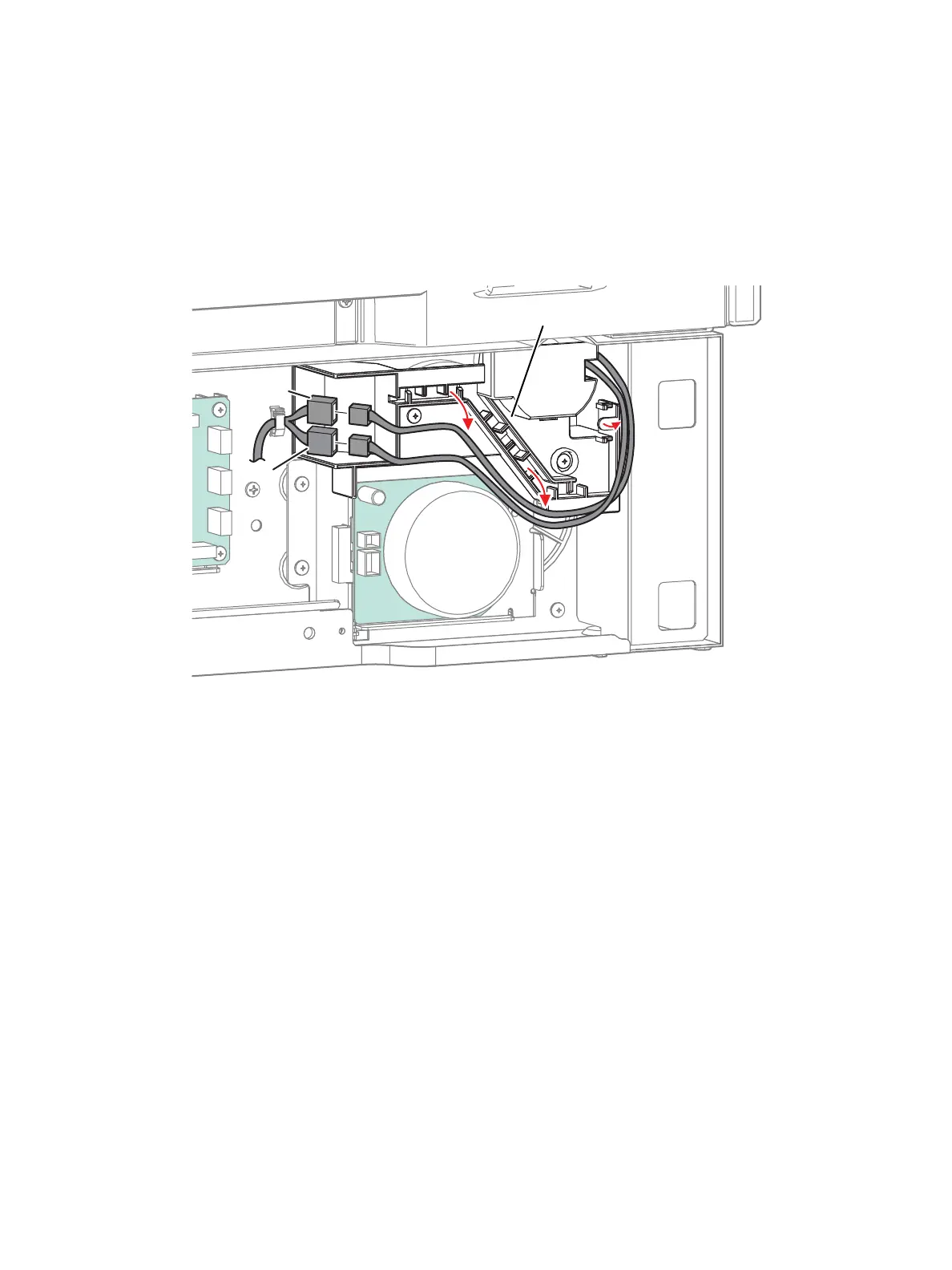

2. Disconnect the 2 wiring harness connectors P/J219 and P/J611.
3. Remove the 2 wiring harnesses that are secured to the Option Harness Cover (PL 15.2.29).
s7100-408
P/J219
P/J611
Option Harness Cover
To Next Page
