Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-20

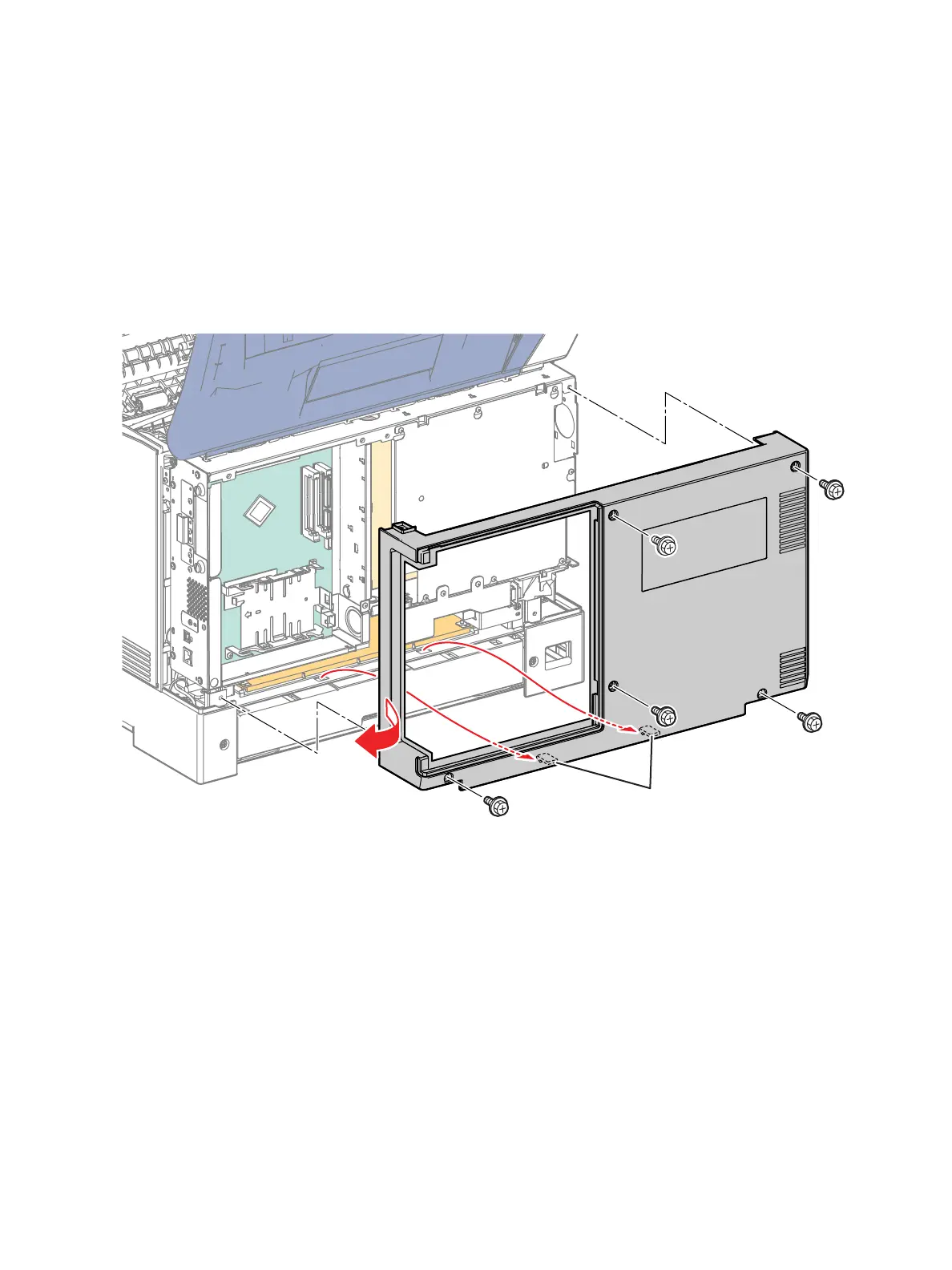

REP 1.6 Rear Cover
PL 1.1.9
1. Remove the I/P PWB Cover Assembly (REP 1.5 Image Processor (I/P) PWB Cover Assembly on
page 4-19).
2. Remove 5 screws (silver, 6mm) that secure the Rear Cover.
3. Release the 2 hooks on the inner bottom of the Rear Cover.
4. Shift the Rear Cover toward the left rear and pull out to remove.
s7100-044
Hooks
