Xerox Phaser 7100

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-50
REP 2.11 Tray Cover
PL 2.1.14

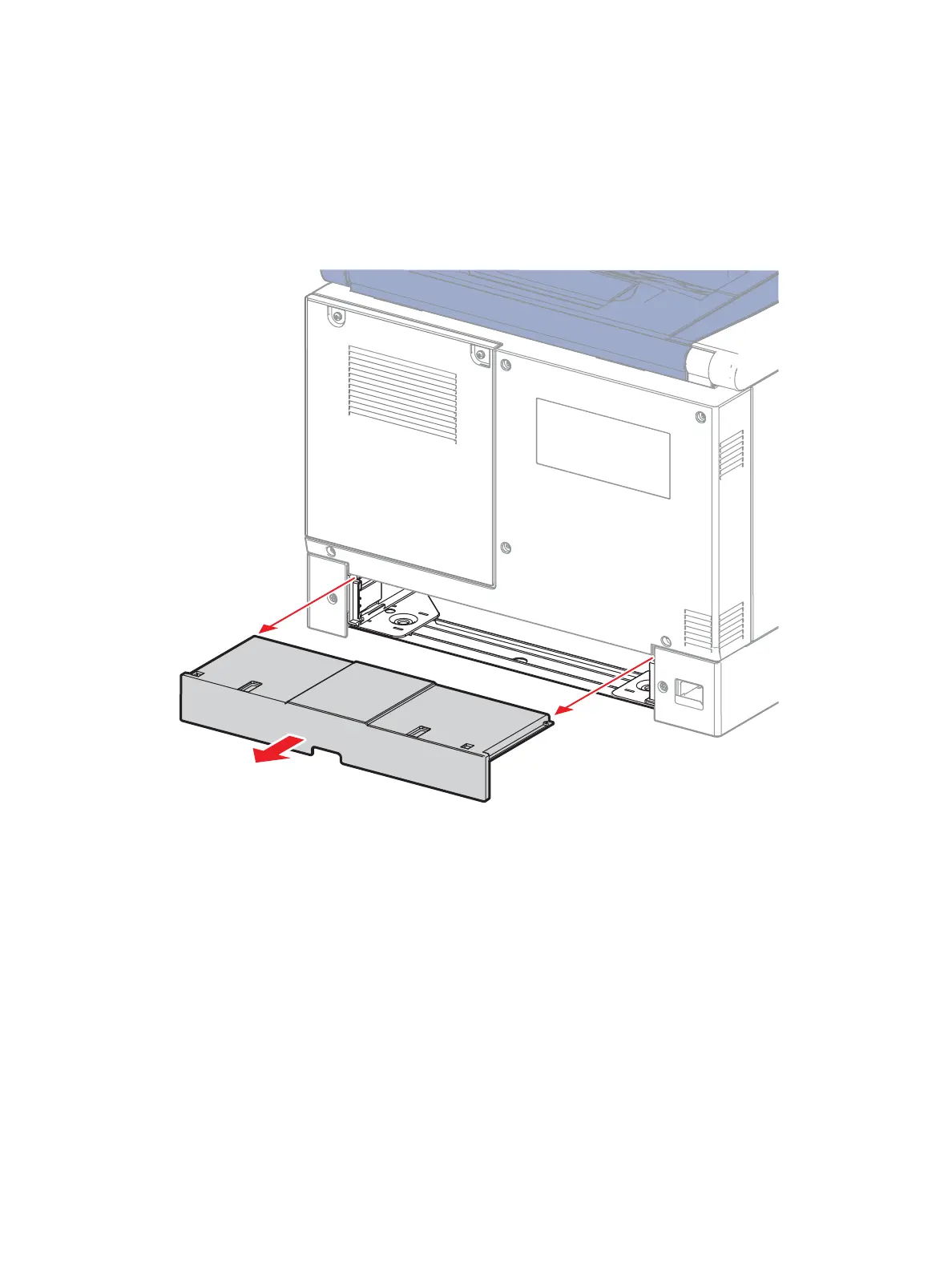

1. From the rear side of the printer, pull out the Tray Cover.
Note: If there is a catch while pulling out the Tray Cover, slightly lift the Cover while pulling it out.
s7100-068
