Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-288

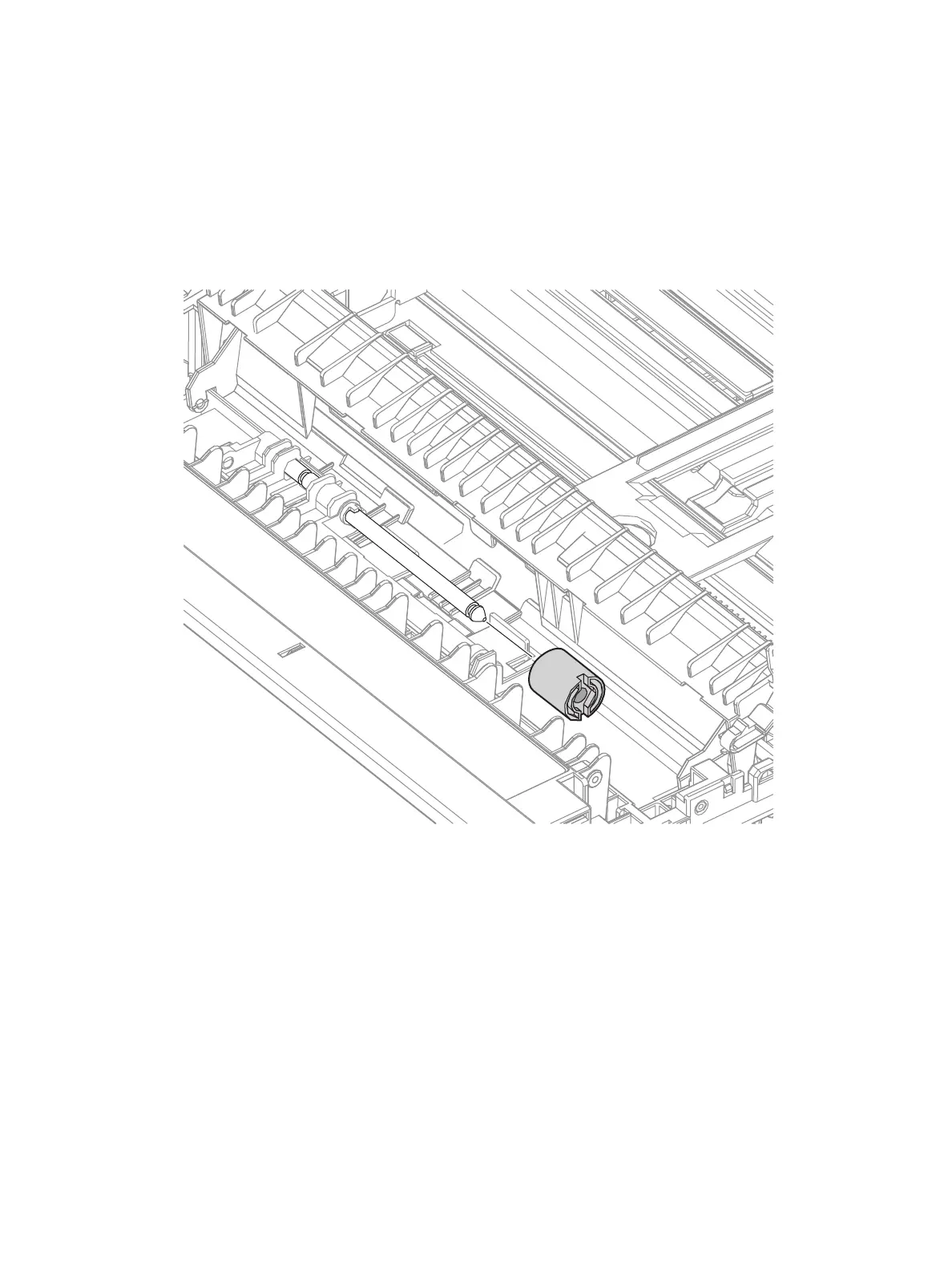

REP 15.24 Friction Clutch
PL 15.3.13
1. Remove Tray 2/ 3/ 4.
2. Remove the Feed Roller Assembly (REP 15.15 Tray 2/ 3/ 4 Feed Roller on page 4-276).
3. Pull out and remove the Friction Clutch from the shaft of the Retard Holder (PL 15.3.15).
s7100-078
