Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-292
REP 15.27 Exit Housing Assembly
PL 15.3.28
1. Remove Tray 2/ 3/ 4.

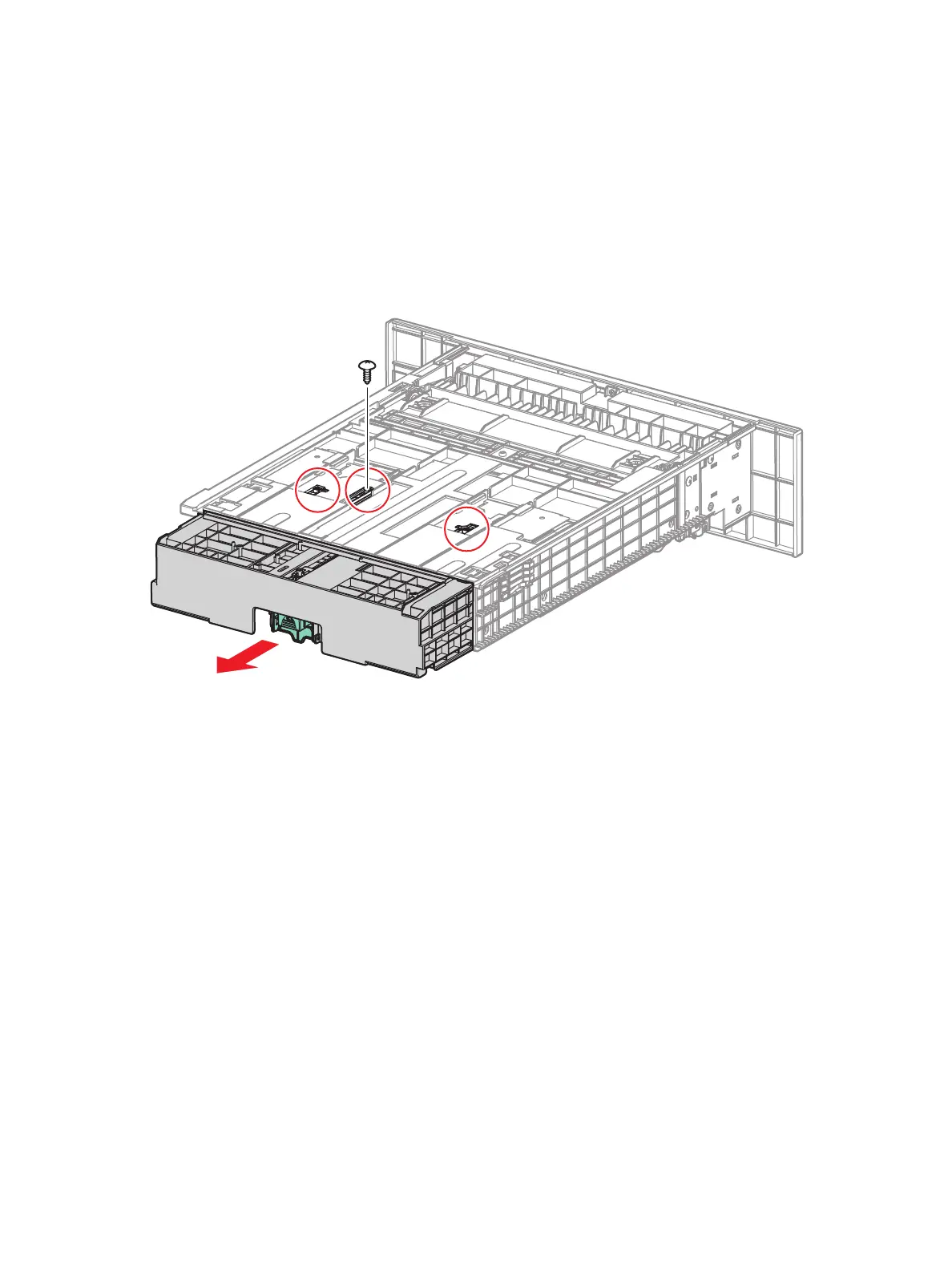

2. Turn the Tray over and remove one screw (silver, tapped, 8 mm) that secures the Exit Housing
Assembly.
3. Free the groove of the Exit Housing Assembly from the screw hole and the Lock Lever protrusions
of the Tray while pulling the Exit Housing Assembly out to remove.
To Next Page
