Plug/Jack and Wiring Diagrams

Phaser 7100 Service Manual Xerox Internal Use Only7-34

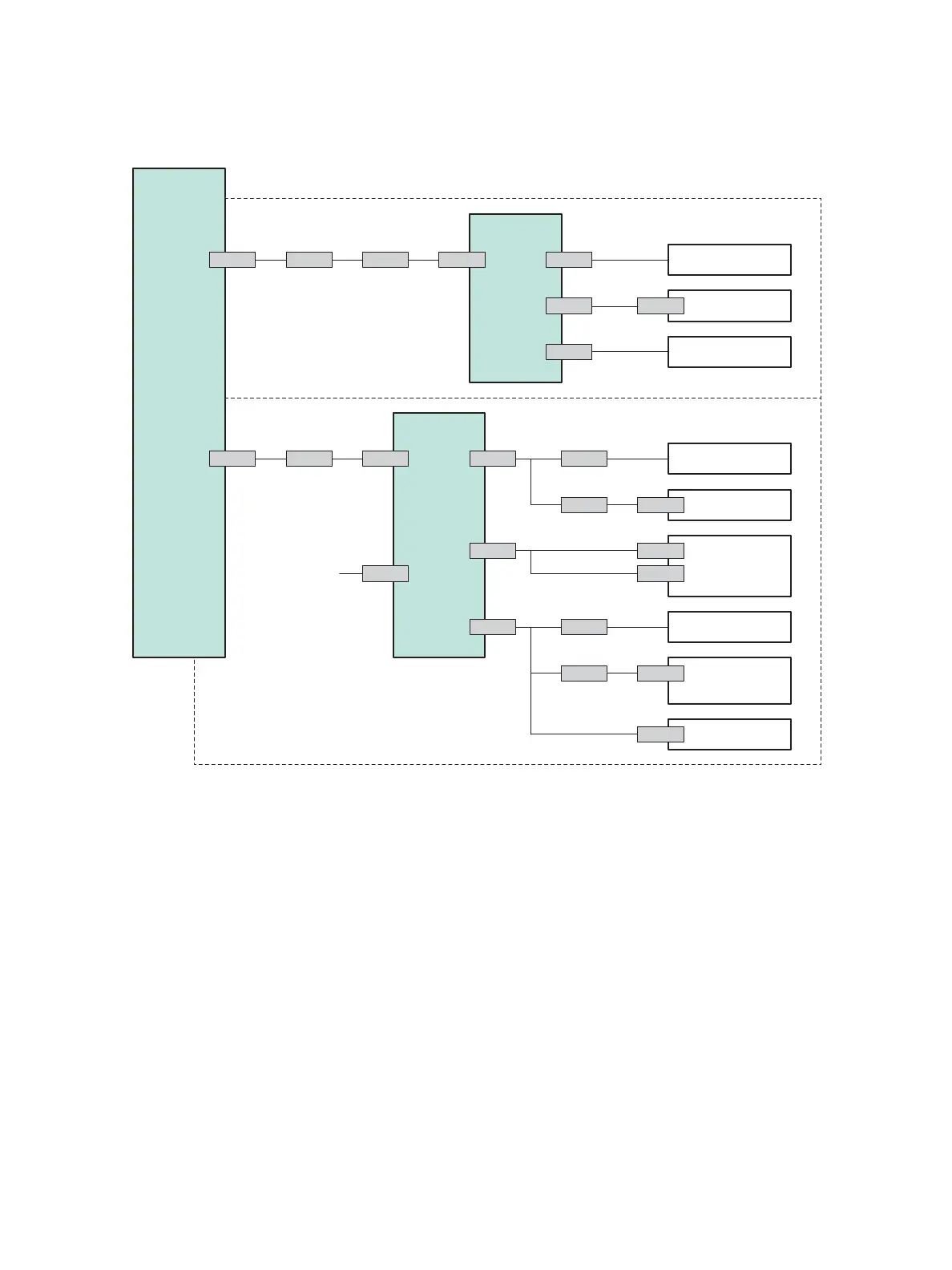

Overview Diagram (3 of 3)

s7100-317

MCU PWB

Feeder PWB

Turn Roller Clutch

Paper Jam Sensor

Feed Drive Assembly

To Second Feeder

Feeder No Paper

Sensor

Paper Size Switch

P/J461 P/J4611 P/J419 P/J420 P/J219

P/J611 P/J122

P/J422 P/J221

P/J222

P/J421 P/J220

P/J612 P/J123

P/J423

P/J124

Feed Roller Clutch

Duplex PWB

Duplex Jam Sensor

Duplex Motor

Duplex Clutch

P/J467 P/J4671 P/J4672 P/J428 P/J429

P/J430

P/J431

P/J125

13

14
