Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-213

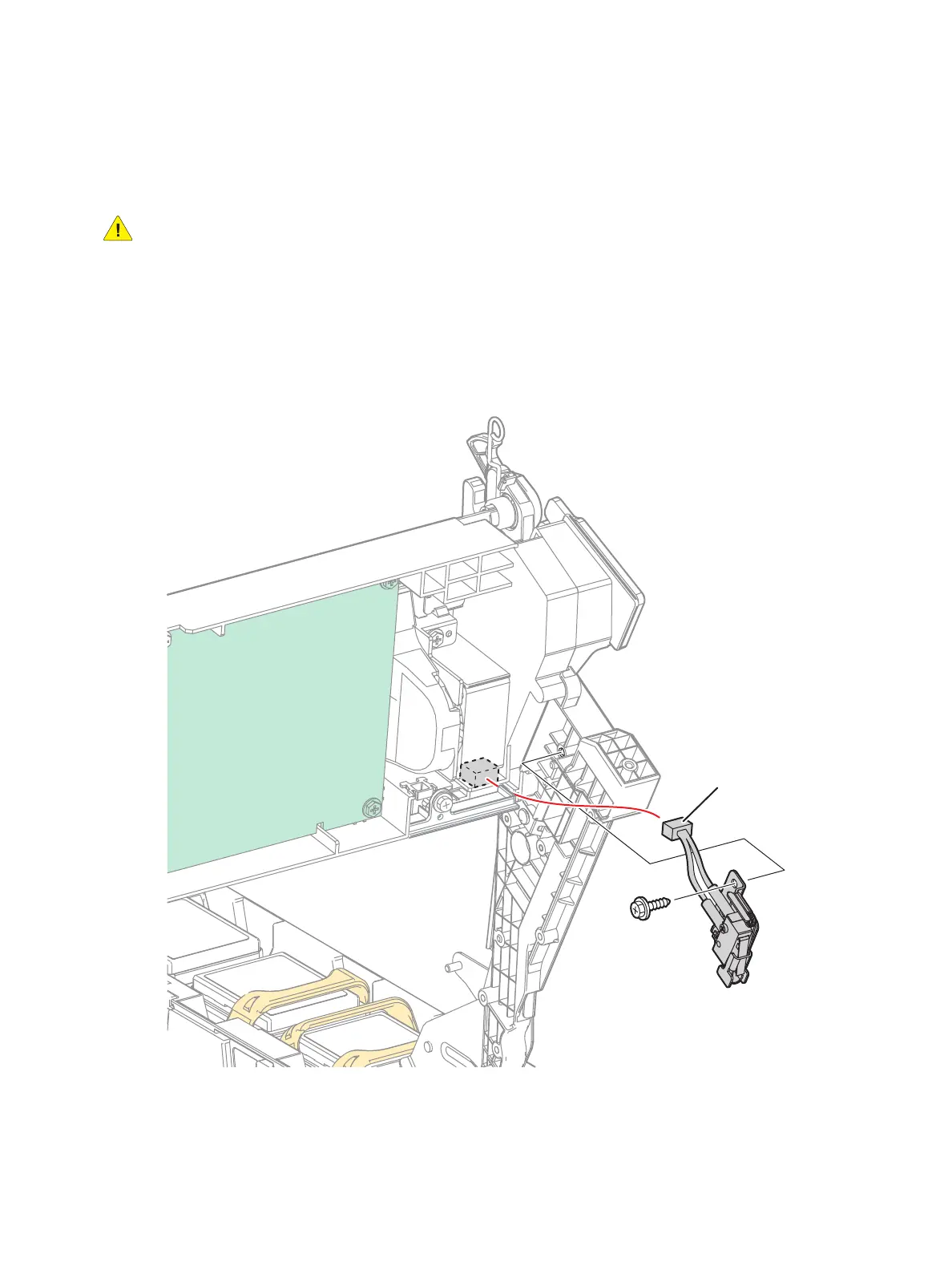

REP 12.8 Waste Cartridge Switch Assembly
PL 12.2.3
CAUTION: Do not touch the IBT Belt surface.
1. Remove the IBT Unit (REP 9.10 IBT Unit on page 4-177).
2. Remove the Top Cover Assembly (REP 1.1 Top Cover Assembly on page 4-9).
3. Disconnect the wiring harness connector P/J5225 that is connected to the Waste Cartridge Switch
Assembly.
4. Remove one screw (silver, 10 mm) that secures the Waste Cartridge Switch Assembly to the Top
Frame Assembly and remove the Switch Assembly.
To Next Page
