REP 14.6 Duplex PWB
PL 14.3.8
CAUTION: PWB’s can be damaged by an electrostatic discharge. Observe all ESD procedures to
avoid component damage.
1. Remove the Duplex Unit (REP 14.1 Duplex Unit on page 4-249).

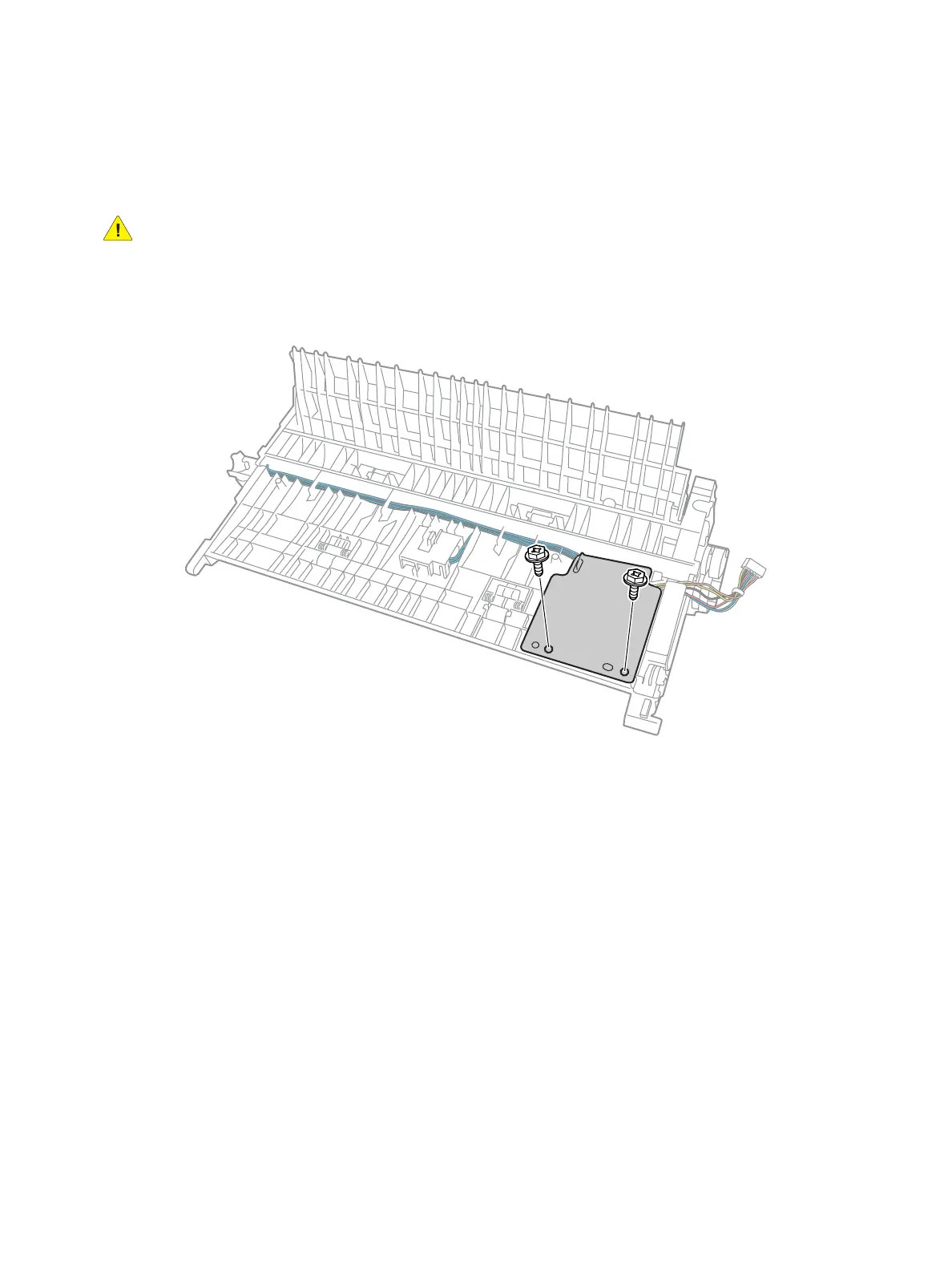

2. Remove 2 screws that secure the PWB Shield (PL 14.3.10) and remove the Shield.
s7100-451
