Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-225
REP 12.15 Temp/ Humidity (Environmental) Sensor
PL 12.2.18
1. Remove Tray 1.
2. Remove the I/P PWB Cover Assembly (REP 1.5 Image Processor (I/P) PWB Cover Assembly on
page 4-19).
3. Remove the Rear Cover (REP 1.6 Rear Cover on page 4-20).
4. Remove the Right Side Cover (REP 1.11 Right Side Cover on page 4-27).
5. Remove the Right Feeder Cover (REP 2.3 Right Feeder Cover on page 4-40).

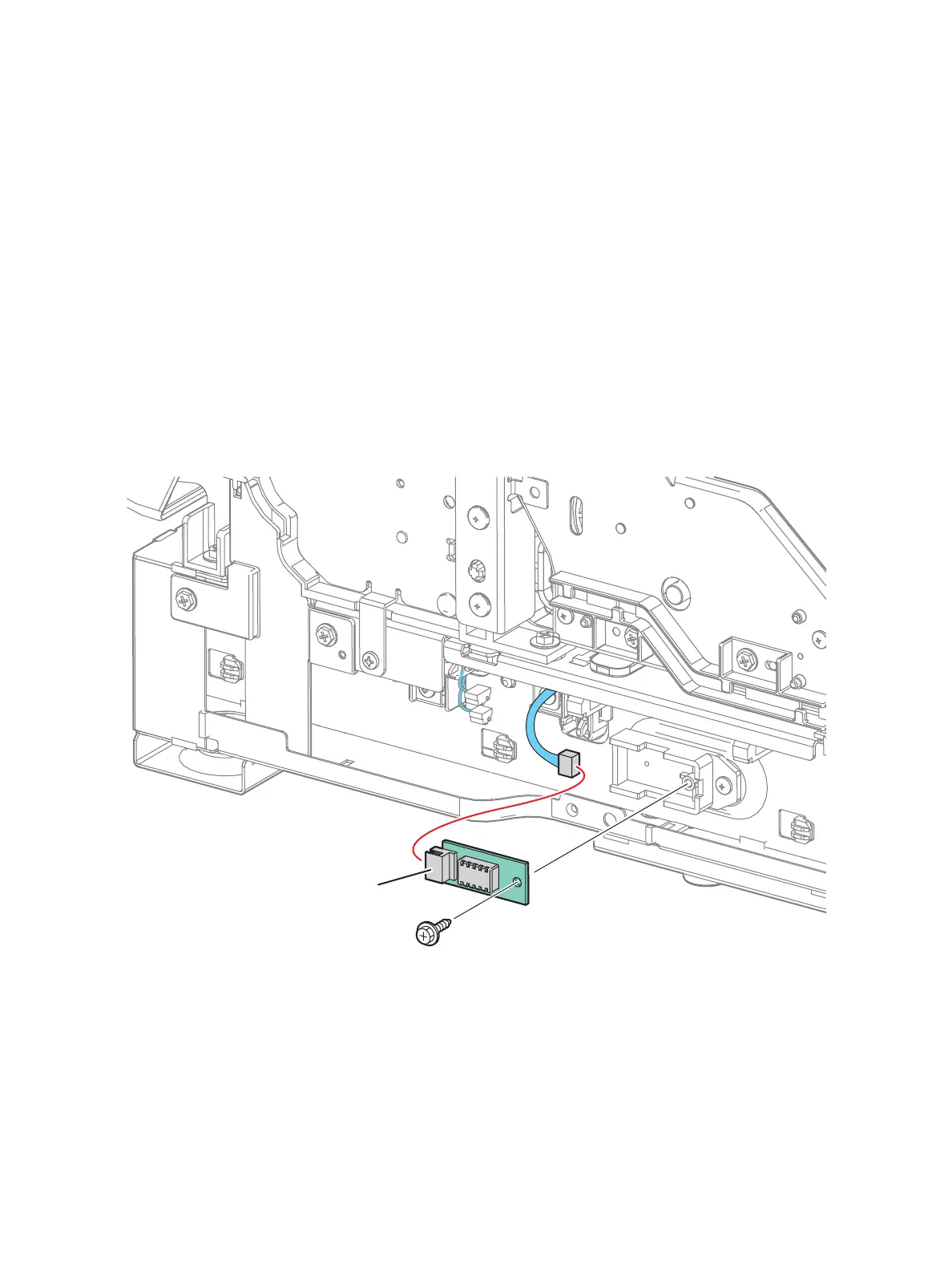

6. Disconnect the wiring harness connector P/J4651B that is connected to the Temp/ Humidity
Sensor.
7. Remove one screw (silver, tapped, 8 mm) that secures the Temp/ Humidity Sensor to the Temp/
Humidity Sensor PWB Housing (PL 12.2.19).
8. Remove the Temp/ Humidity Sensor.
