Servi
ce P
arts Disasse
mbl
y
Phaser 7100 Service Manual
X
ero
x Internal Use Only
4-136
Dev
elopment

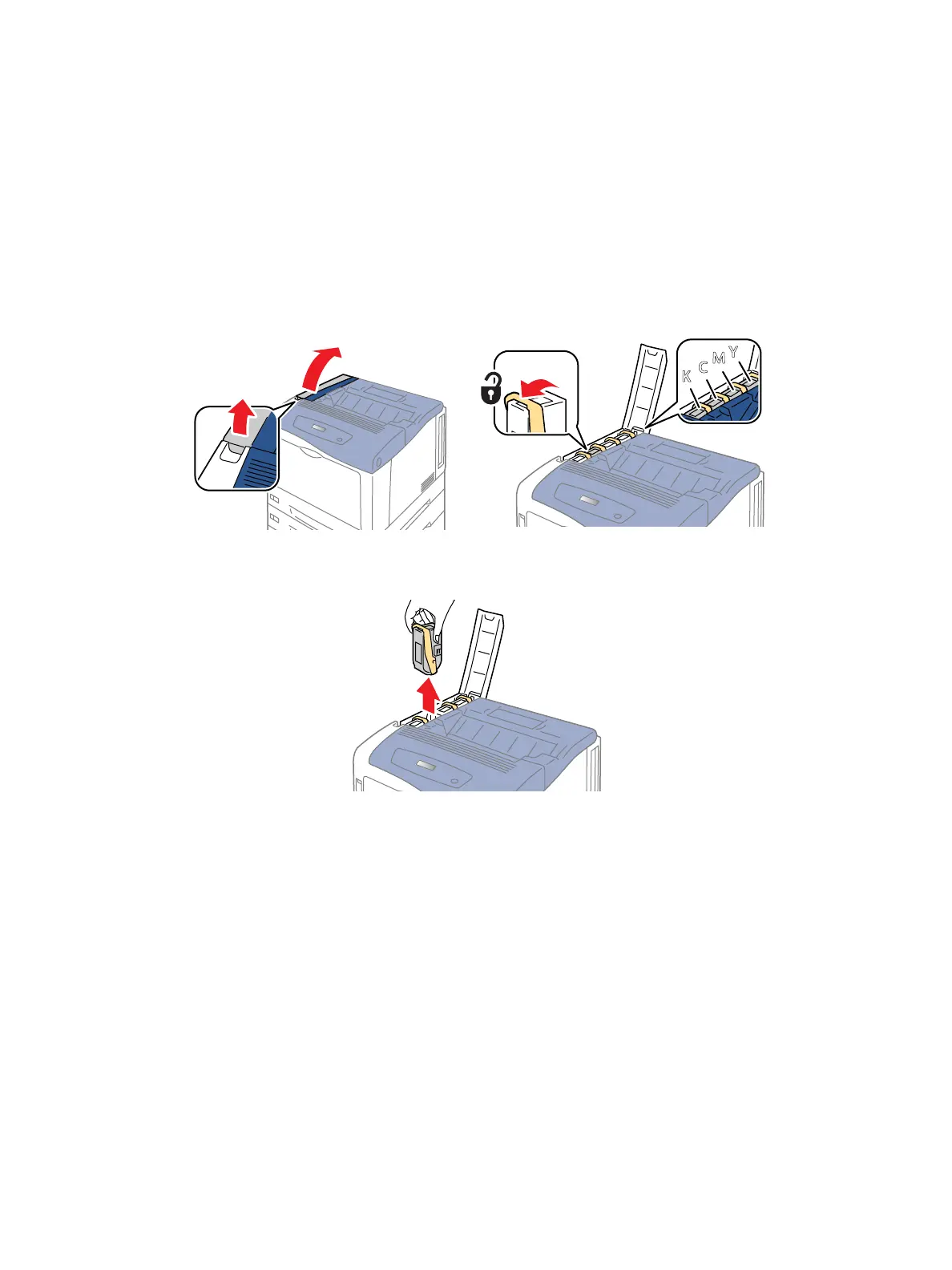

REP 8.0 T
oner Cartridge Assembly
(Y/ M/ C/ K)
PL 8.1.1 - P
L 8.1.4
1.
Open the T
one
r Cartridge C
over Assembly (PL 1.
1.12).
2.
R
e
lease the
T
oner
Cartridge lock
.
3.
Pull the T
oner Cartridge ou
t to remov
e.
s7100-326
Y
M
C
K
s7100-327
783
785
