Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-135
• Keep the cables in the rear of the printer unclipped before installing the Left Rear Spring
(PL 7.1.4).
• Perform DC676 ROS Exposure Point Adjustment (DC676 Adjust ROS on page 2-52).
s7100-342

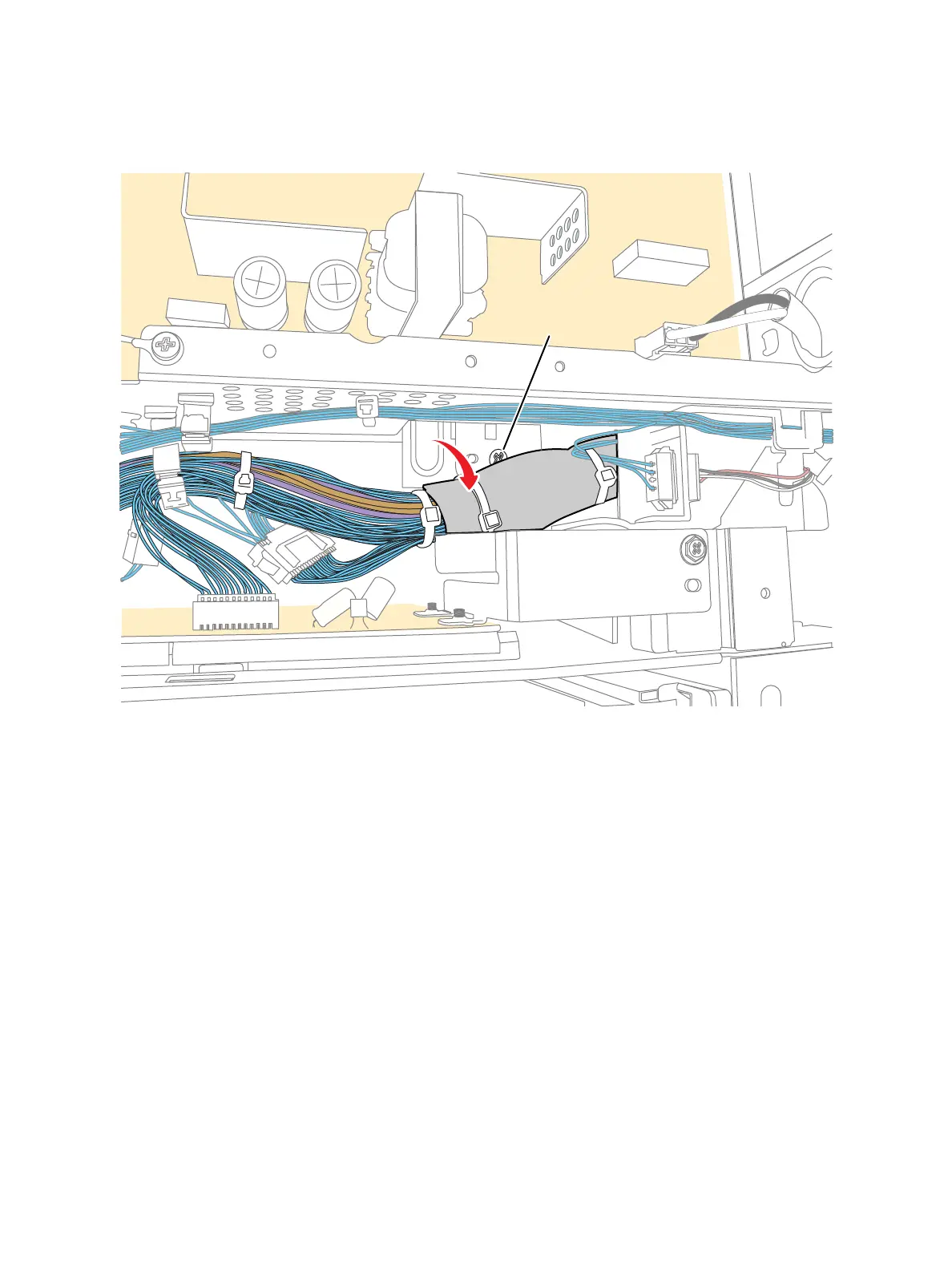

Left Rear Spring
