Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-134
Replacement Notes:

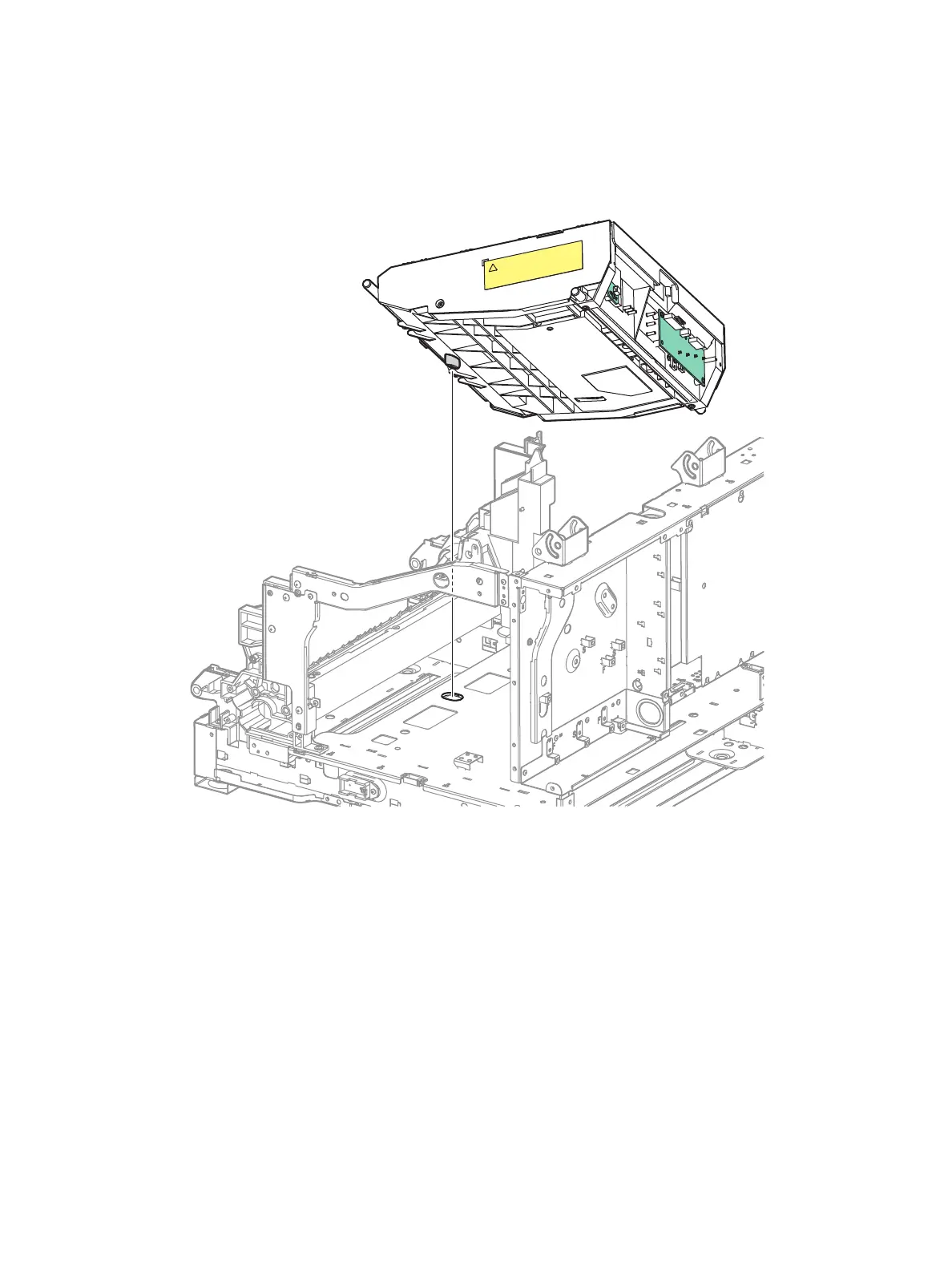

When installing the Laser Unit, be sure to align the boss with the hole in the printer
frame. If the Laser Unit is installed with the boss position misaligned, the printer will not
function properly.
s7100-136
