Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-268
REP 15.8 550 Left Feeder Cover
PL 15.1.11
1. Remove 4 screws (silver, 6 mm) that secure the Left Feeder Cover.
2. Free the boss at the front of the Left Feeder Cover from the boss hole, then free the boss at the
rear from the boss hole and remove the Left Feeder Cover.

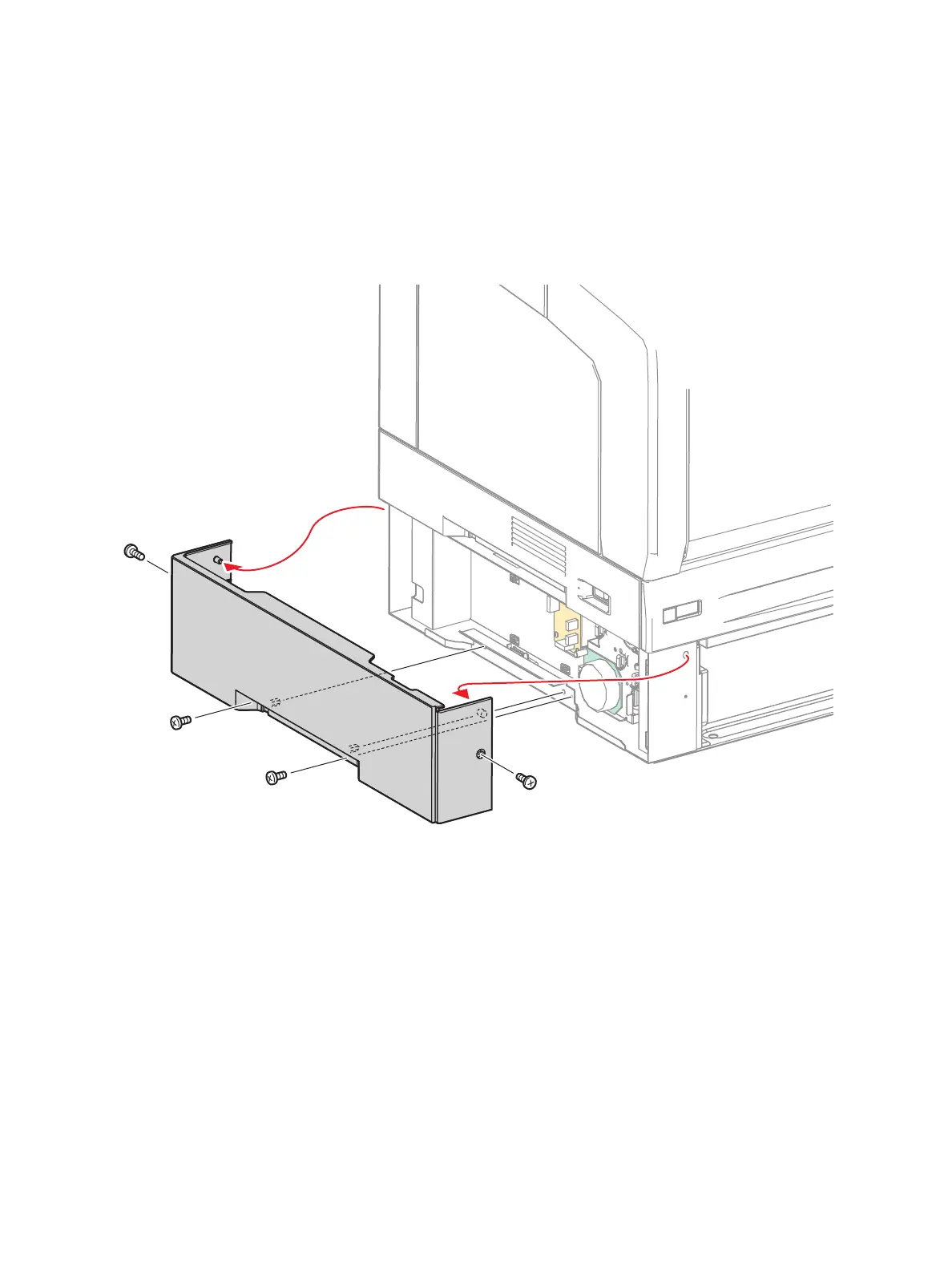

s7100-122
