Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-54
REP 2.15 Feed Roller/ Retard Roller Assembly
PL 2.2.11/ PL 2.2.99

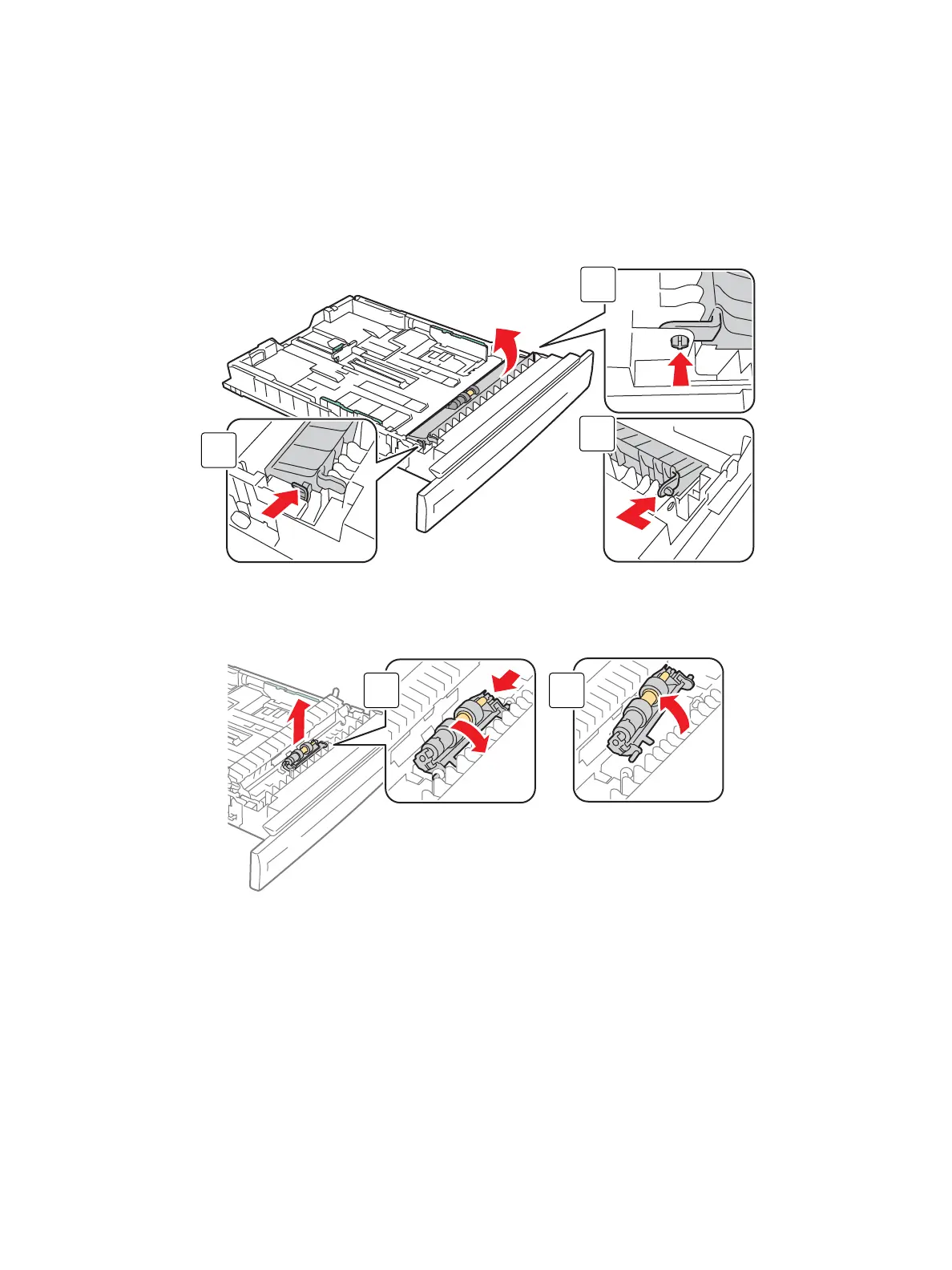

1. Remove Tray 1.
2. Press the Latch inward, release the left and right tabs and open the Retard Chute (PL 2.3.21).
3. Rotate the Retard Roller Assembly upward while sliding the Retard Roller Assembly toward the left
side, and remove the Retard Roller Assembly.
1
2
3
s7100-321
1
2
1 2
s7100-322
