Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-72
REP 3.4 Left/ Right Bypass Tray Cover Lock
PL 3.1.11/ PL 3.1.12
1. Open the Bypass Tray Cover (PL 3.1.9).
2. Remove the Bypass Tray Assembly (REP 3.5 Bypass Tray Assembly on page 4-73).
3. While pressing down on the 2 tabs on the Bypass Tray Cover side of the Bypass Tray Strap (PL
3.1.1), slide the Bypass Tray Strap horizontally to remove it.
Note: Be careful not to mix the left and the right of Left/ Right Bypass Tray Cover Lock (PL 3.1.11/
PL 3.1.12). The Left Bypass Tray Cover Lock has an “L” engraved mark, while the Right Bypass Tray
Cover Lock has an “R” engraved mark.
4. Rotate the Left/ Right Bypass Tray Cover Lock that secure the Bypass Tray Cover Assembly to the
Left/ Right Pin (PL 3.1.10/ PL 3.1.13) upward and pull the Bypass Tray Cover Assembly toward the
inner side to remove it.

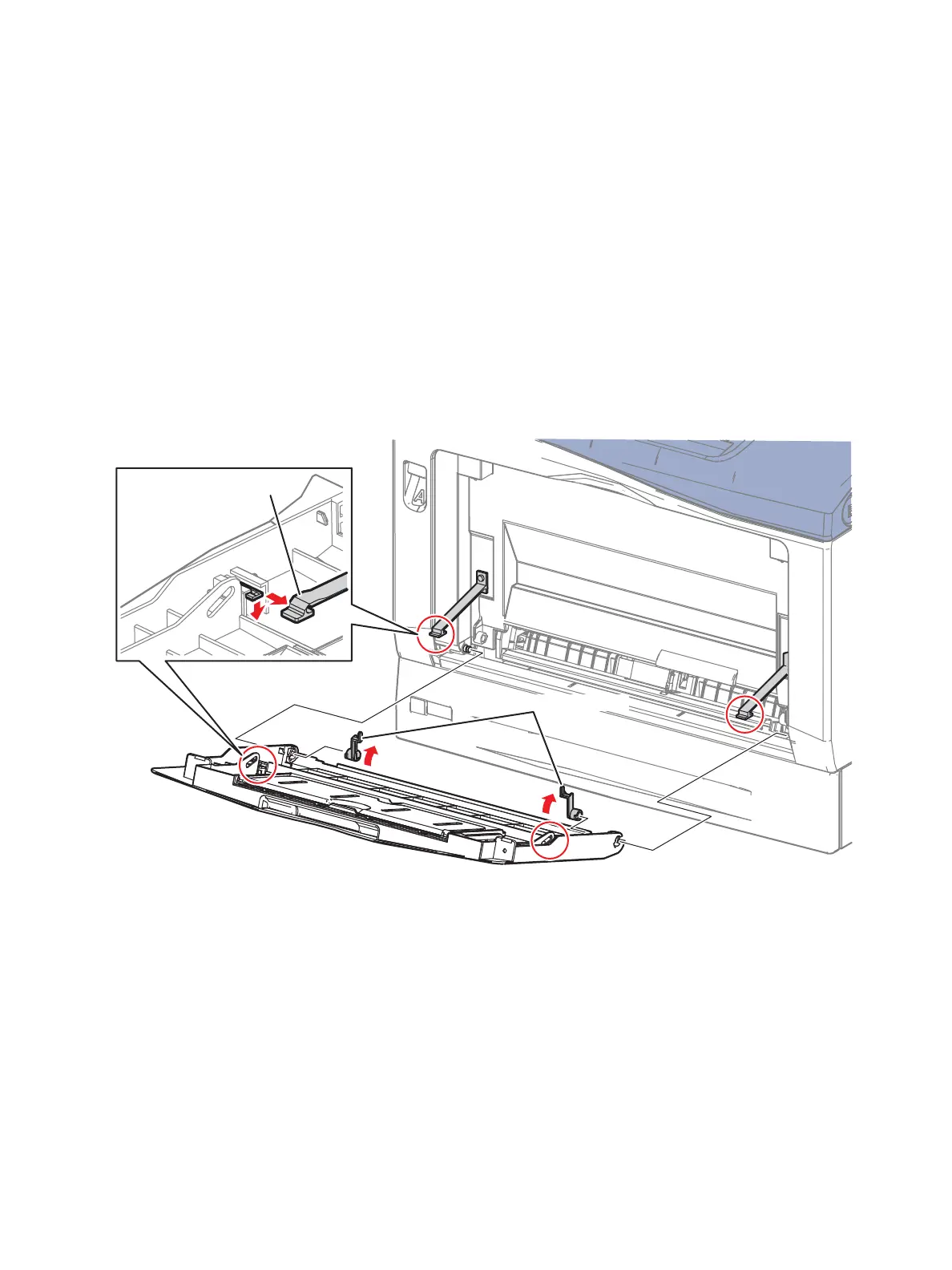

s7100-324
Strap
Bypass Tray Cover Lock

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
