Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-19
REP 1.5 Image Processor (I/P) PWB Cover Assembly
PL 1.1.8

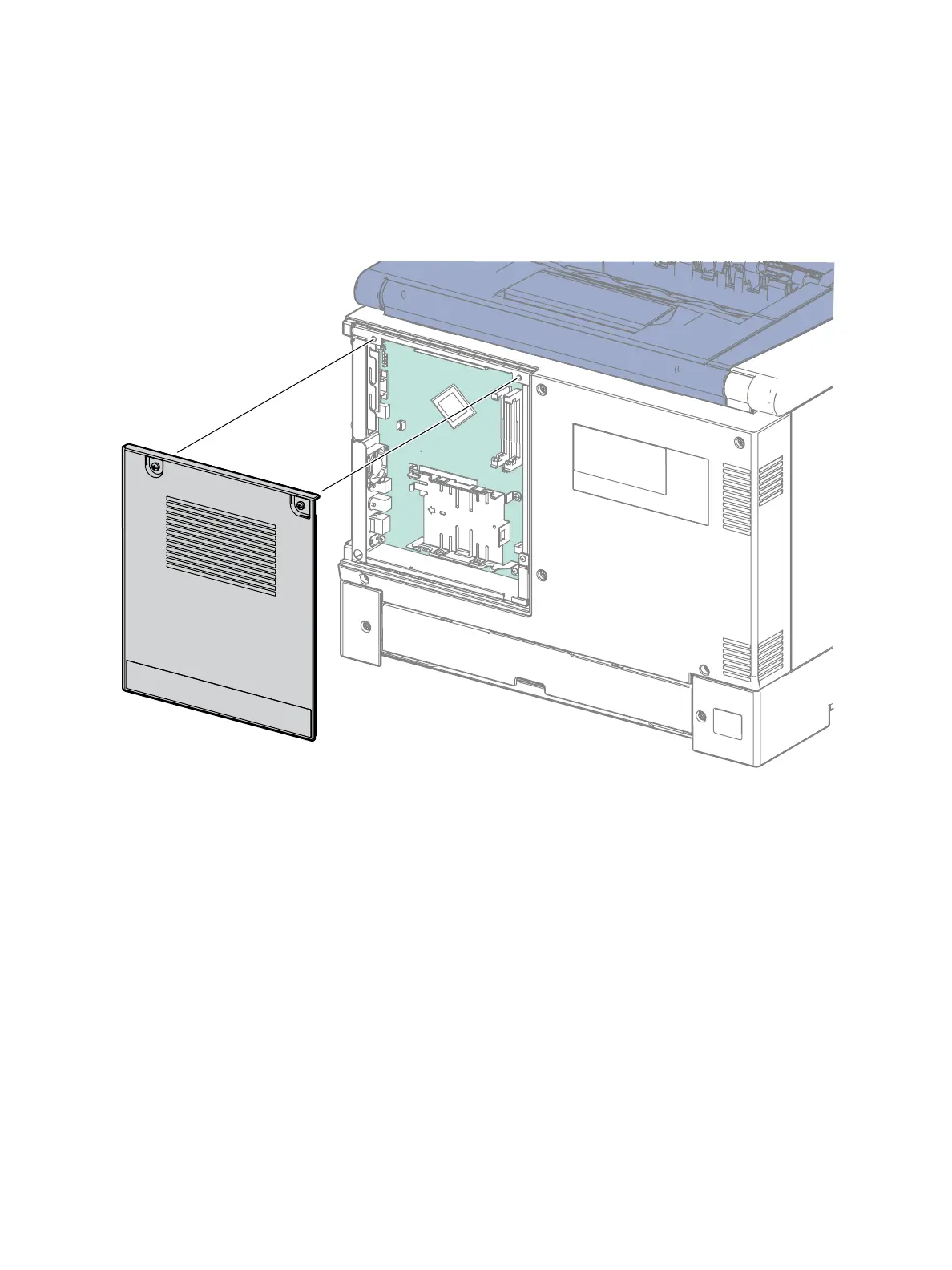

1. Loosen the 2 screws that secure the I/P PWB Cover Assembly.
2. Remove the I/P PWB Cover Assembly.
s7100-043
