Xerox Phaser 7100 Service Manual

Error Troubleshooting
Xerox Internal Use Only Phaser 7100 Service Manual 2-413
Image Processor (I/P) PWB LEDs
Assessment on the condition of the parts and the condition of the I/P PWB can be done based on the
On/ Off states of the 8 LED’s on the I/P PWB. To check the condition of an error where no Error Code is
displayed, check the LED display on the I/P PWB.
As the device that can be connected differs depending on the board, it does not always necessarily
mean that diagnostic is possible. In the following table, items that are installed as features are marked
with “O”.
Procedure
1. Turn Off the printer.
2. Unplug the power cord from the outlet.
3. Remove the Blind Board of the I/P PWB.
4. Plug in the power plug and turn On the power switch.

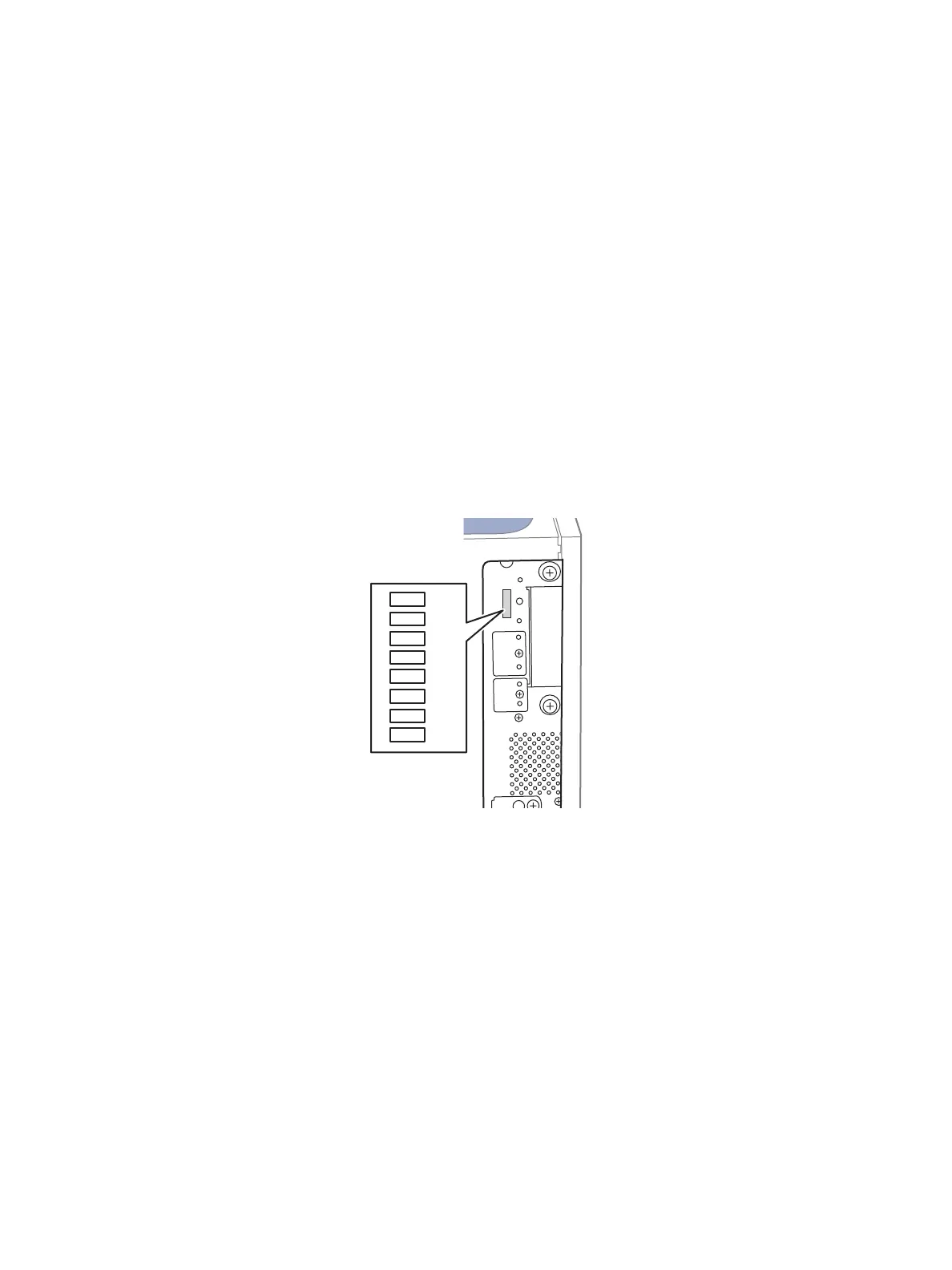

Checking LEDs
s7100-432
7
6
5
4
3
2
1
0

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
