Xerox Phaser 7100

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-262
REP 15.2 550 Right Feeder Cover
PL 15.1.3

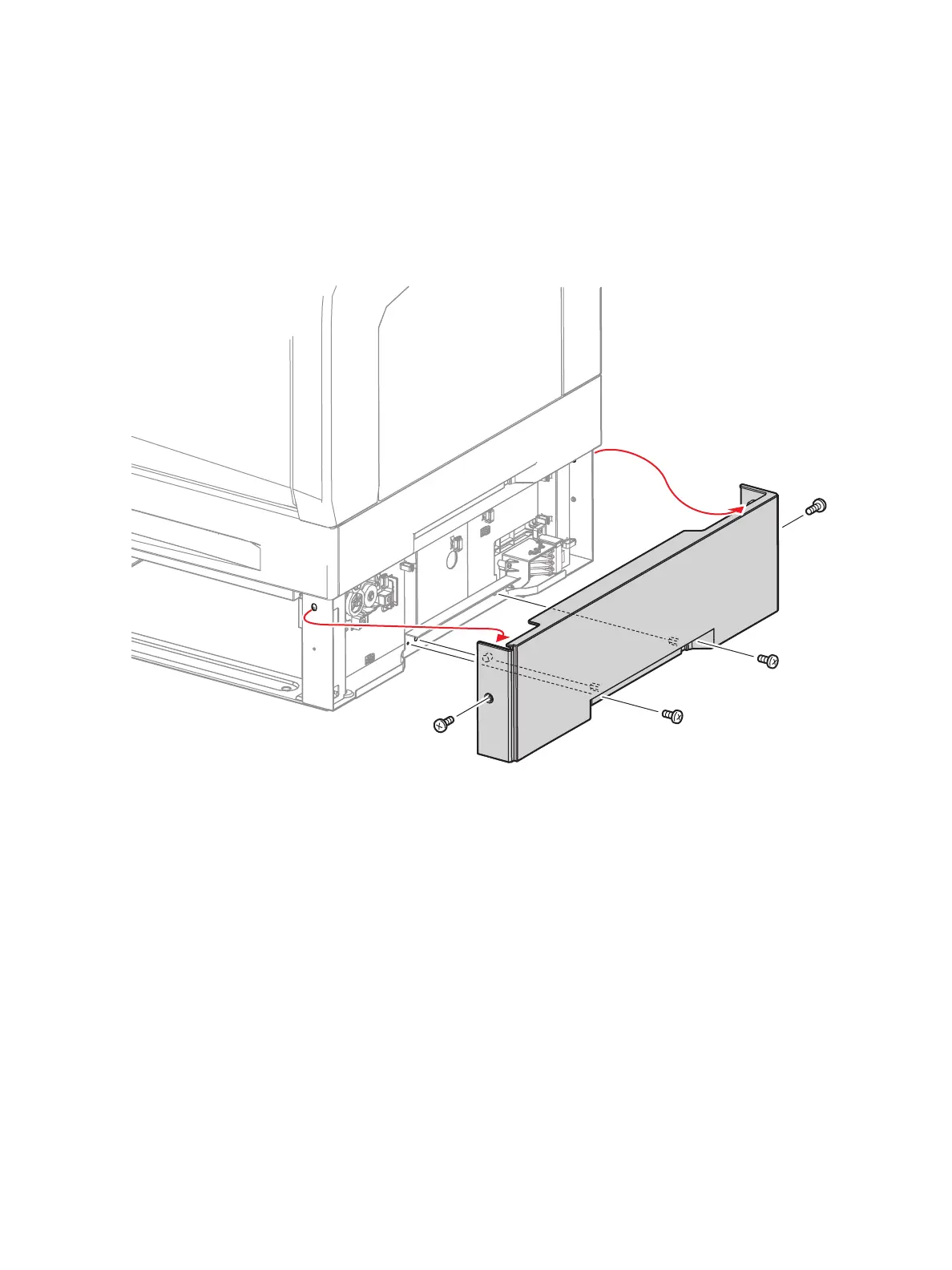

1. Remove 4 screws (silver, 6 mm) that secure the Right Feeder Cover.
2. Free the boss at the front of the Right Feeder Cover from the boss hole, then free the boss at the
rear from the boss hole and remove the Right Feeder Cover.
s7100-147
