Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-234
REP 12.19 Memory (Optional)
PL 12.4.3
CAUTION: PWB’s can be damaged by an electrostatic discharge. Observe all ESD procedures to
avoid component damage.

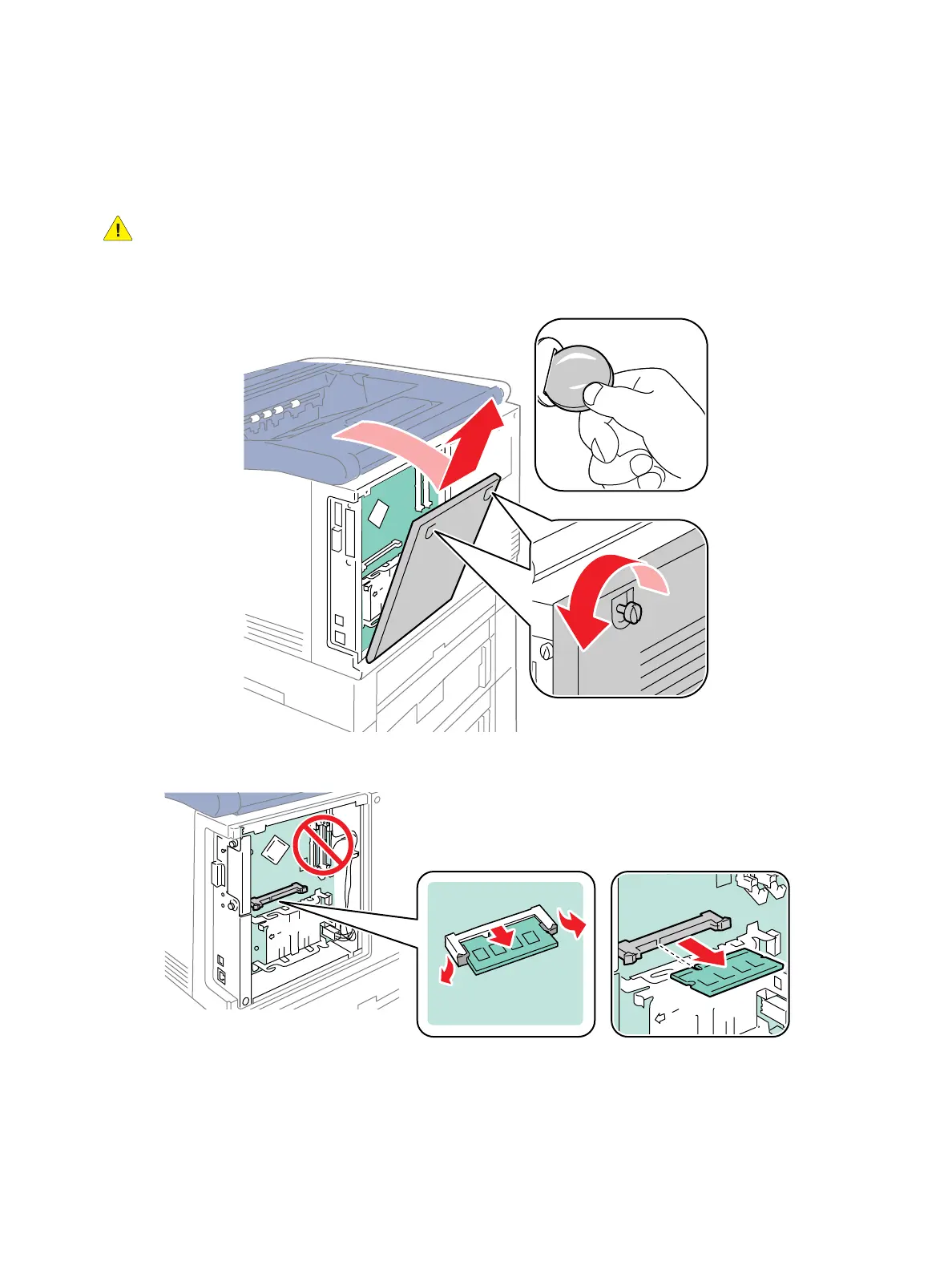

1. Loosen 2 screws that secure the Image Processor PWB Cover and remove the Cover.
2. Release the latches and pull the Memory Card out to remove.
2
1
s7100-419
To Next Page
