Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-210
REP 12.6 EEPROM PWB
PL 12.1.18
CAUTION: PWB’s can be damaged by an electrostatic discharge. Observe all ESD procedures to
avoid component damage.
1. Remove the I/P PWB Cover Assembly (REP 1.5 Image Processor (I/P) PWB Cover Assembly on
page 4-19).
2. Remove the Rear Cover (REP 1.6 Rear Cover on page 4-20).
3. Remove the Left Side Cover (REP 1.10 Left Side Cover on page 4-25).

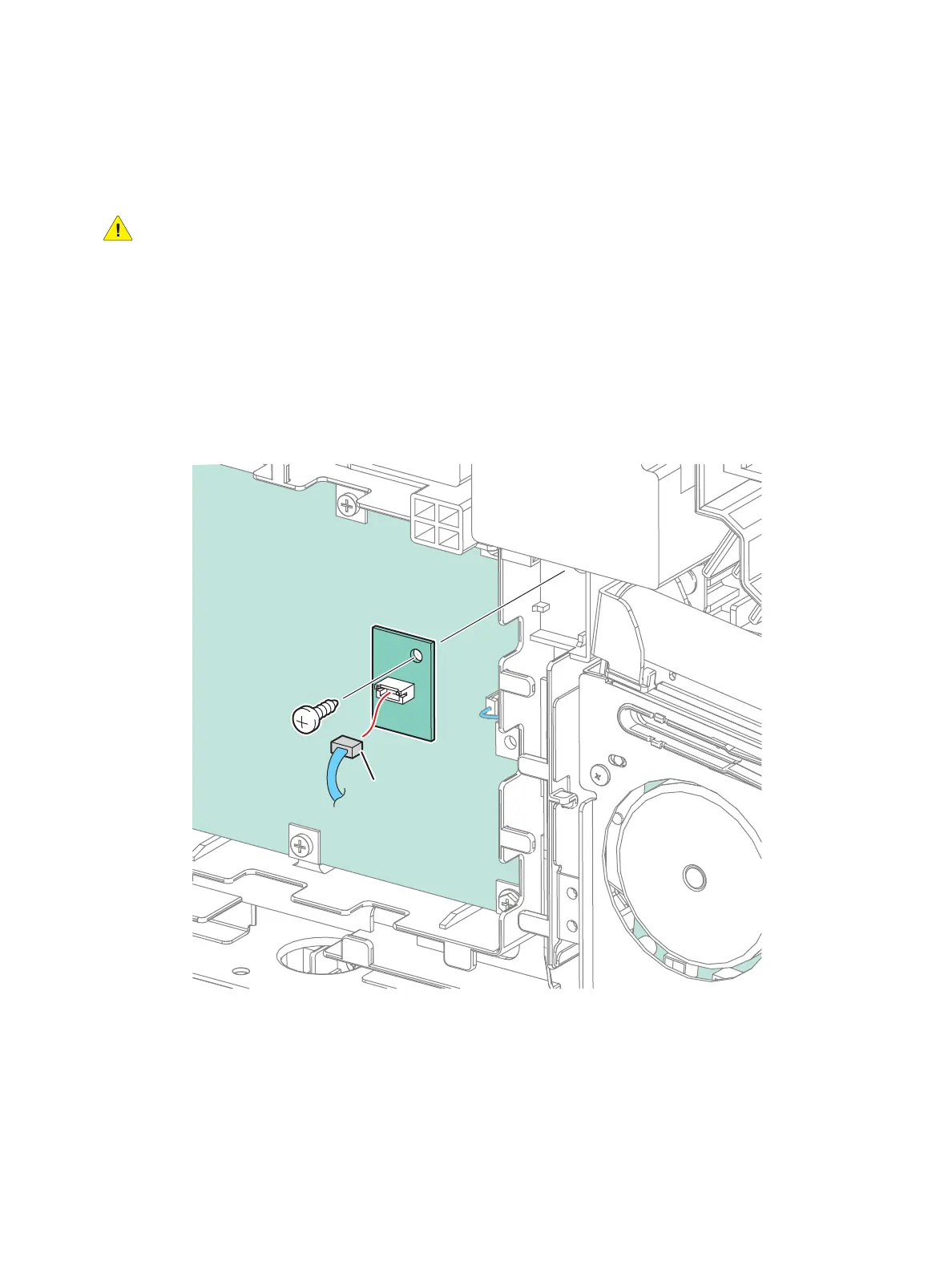

4. Disconnect the wiring harness connector P/J144 that is connected to the EEPROM PWB.
5. Remove one screw (silver, tapped, 8 mm) that secures the EEPROM PWB to the printer.
6. Remove the EEPROM PWB.
s7100-387
P/J144
