Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-214
REP 12.9 Front Interlock Switch Assembly
PL 12.2.4
CAUTION: Do not touch the IBT Belt surface.
1. Remove the IBT Unit (REP 9.10 IBT Unit on page 4-177).
2. Remove the Top Cover Assembly (REP 1.1 Top Cover Assembly on page 4-9).

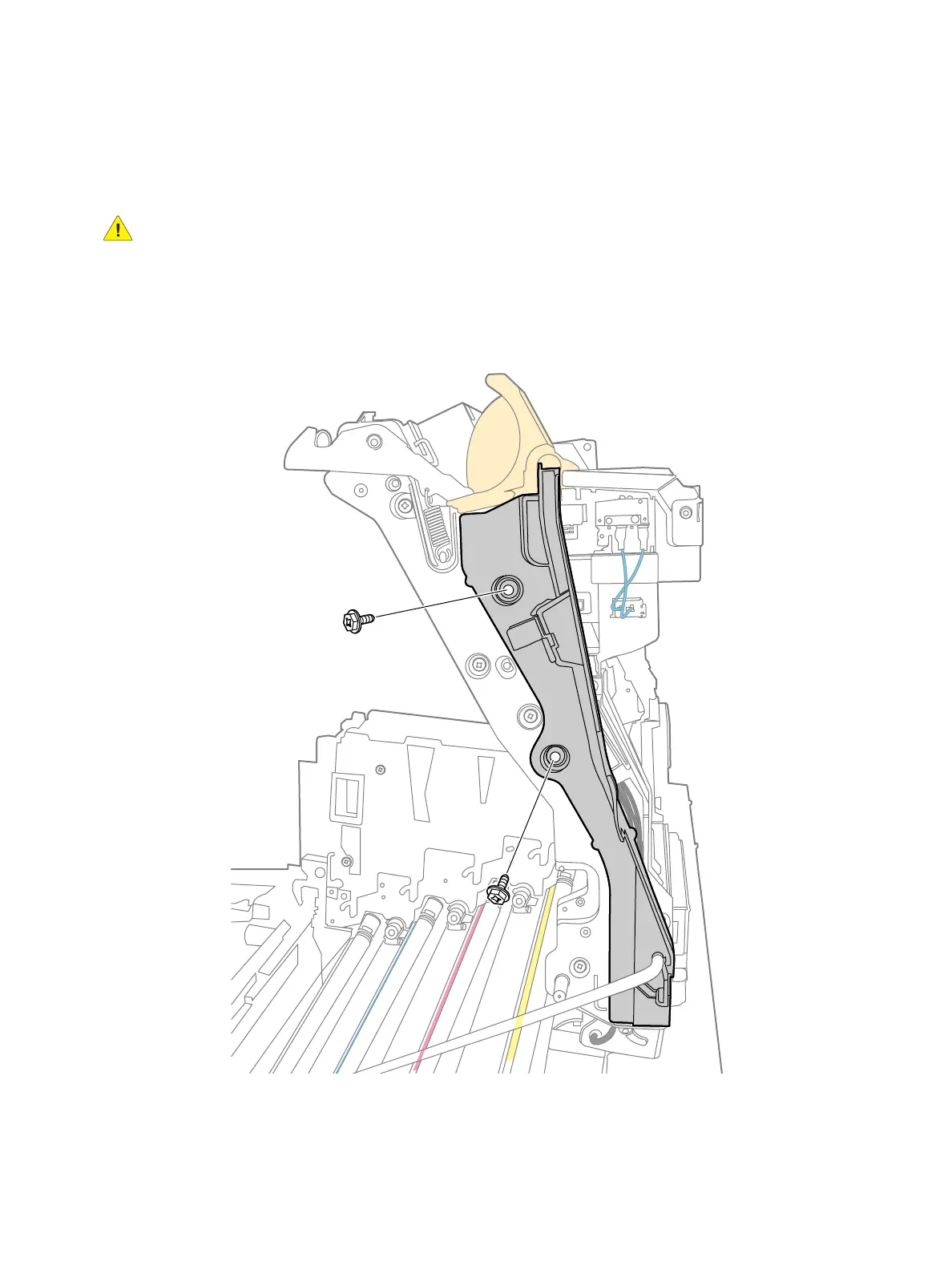

3. Remove 2 screws that secure the Top Right Guard Frame (PL 9.1.25).
4. Remove the Top Right Guard Frame.
s7100-346
