Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-272
REP 15.12 Feeder Sub Assembly
PL 15.2.7
1. Remove the 550 Left Feeder Cover (REP 15.8 550 Left Feeder Cover on page 4-268).
2. Remove the 550 Right Feeder Cover (REP 15.2 550 Right Feeder Cover on page 4-262).
3. Remove the Protect Cover Assembly (REP 15.5 Protect Cover Assembly on page 4-265).

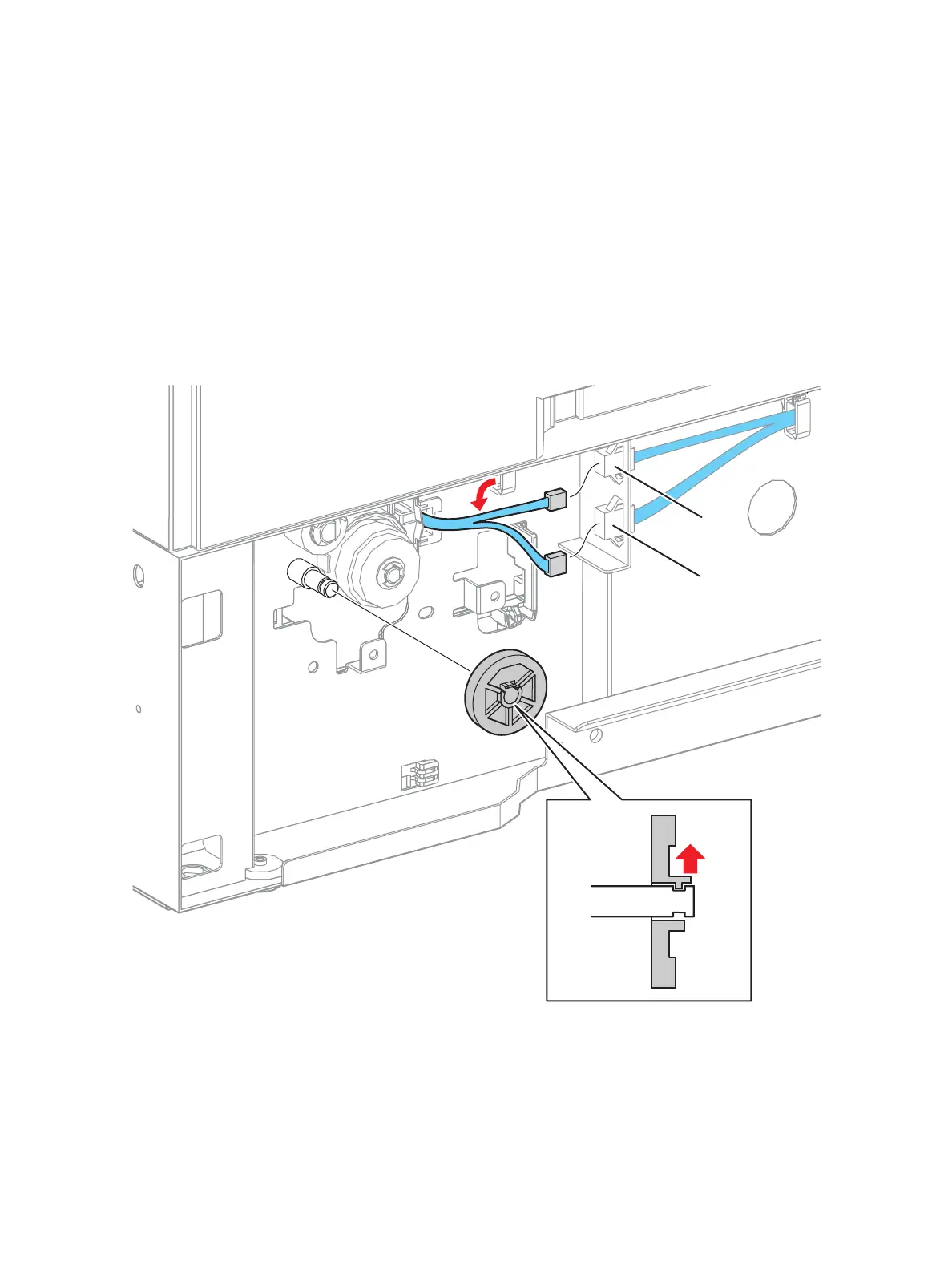

4. Release the hook that secures the Right Idle Gear 28 (PL 15.2.23) and pull out the Gear to remove.
5. Disconnect the 2 wiring harness connectors P/J220 and P/J612 on the harness that is connected
to the Feeder Sub Assembly.
6. Release the Clamp to remove the wiring harness that is connected to the Feeder Sub Assembly.
s7100-291
P/J612
P/J220
