Service Parts Disassembly
X
erox Inte
rnal Use Only
Phaser 7100 Service Manual
4-273

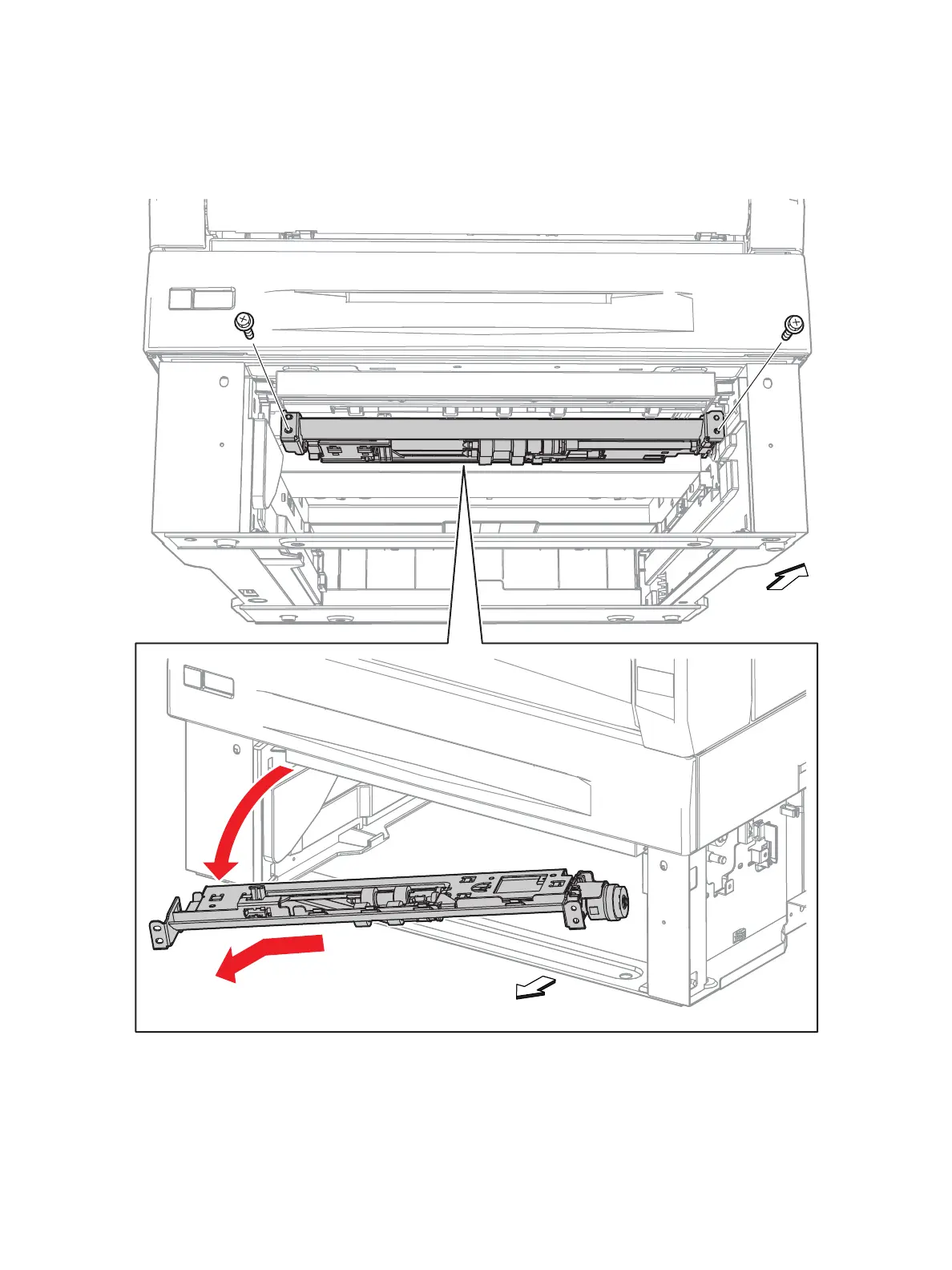

7.
R
e
move 2 screw (si
lver, collared, 10 m
m) that
secure the F
e
eder Sub
Assem
bly.
8.
Shift the F
eeder Sub Assembly tempor
arily to the
f
ront, f
r
ee the 2
protrusions from the hole, lower
the left side of
the F
eeder S
ub Asse
mbly and remove it towards you.
s7100-292
Front
Front
920
922
